EV10-56RBK-Q
STRONGHOLD RING TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

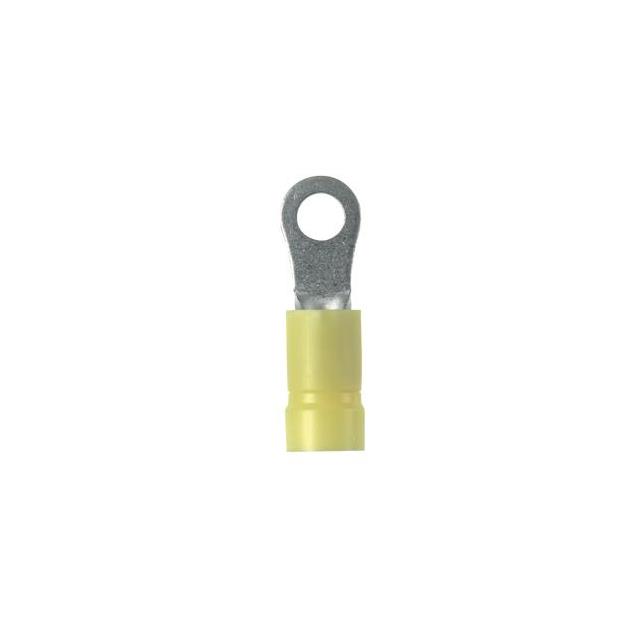

Panduit Corp StrongHold™ EV10-56RBK-Q is a yellow, insulated ring terminal connector designed for 10-12 AWG wire. This circular terminal features a 5/16 stud size and a tin contact finish on copper material. The robust construction includes a butted seam for enhanced durability in demanding applications. Its free-hanging, in-line mounting type facilitates straightforward installation. Commonly utilized in industrial automation, power distribution, and heavy equipment manufacturing, this component ensures reliable electrical connections within these sectors. The terminal's overall length measures 1.320 inches (33.53mm) with a width of 0.590 inches (14.99mm) and a thickness of 0.040 inches (1.02mm). It is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 1.320"" (33.53mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.590"" (14.99mm) |
| Contact Material | Copper |
Request a Quote
