EV10-38RBK-Q
STRONGHOLD RING TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

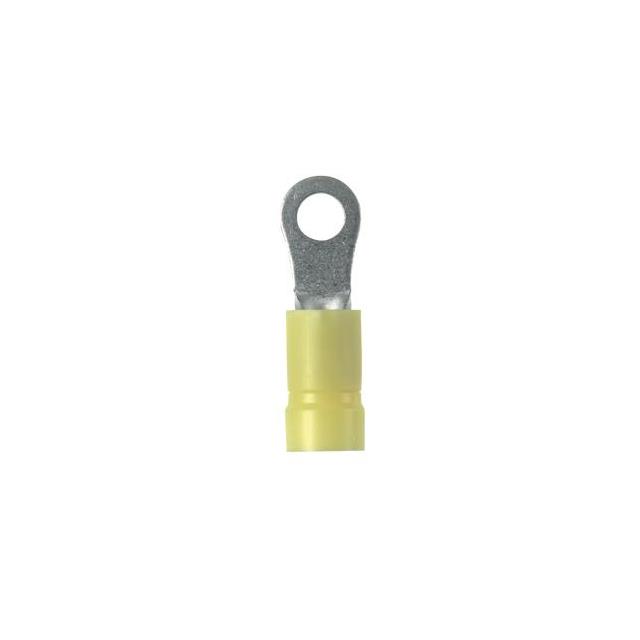

Panduit Corp StrongHold™ EV10-38RBK-Q is a yellow, insulated ring terminal designed for reliable wire termination. This circular terminal features a 3/8" stud size and is suitable for 10-12 AWG wire gauges, utilizing a crimp termination method. Constructed with a copper contact material and tin contact finish, it ensures excellent conductivity and corrosion resistance. The terminal's butted seam construction enhances durability under stress. With an overall length of 1.320" (33.53mm) and a width of 0.590" (14.99mm), it offers a robust connection. The free-hanging (in-line) mounting type facilitates easy installation in various applications. This component is commonly utilized in the industrial, automotive, and telecommunications sectors. Supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Thickness | 0.030"" (0.76mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 1.320"" (33.53mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.590"" (14.99mm) |
| Contact Material | Copper |
