EV10-14RBK-Q
STRONGHOLD RING TERMINAL, VINYLManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

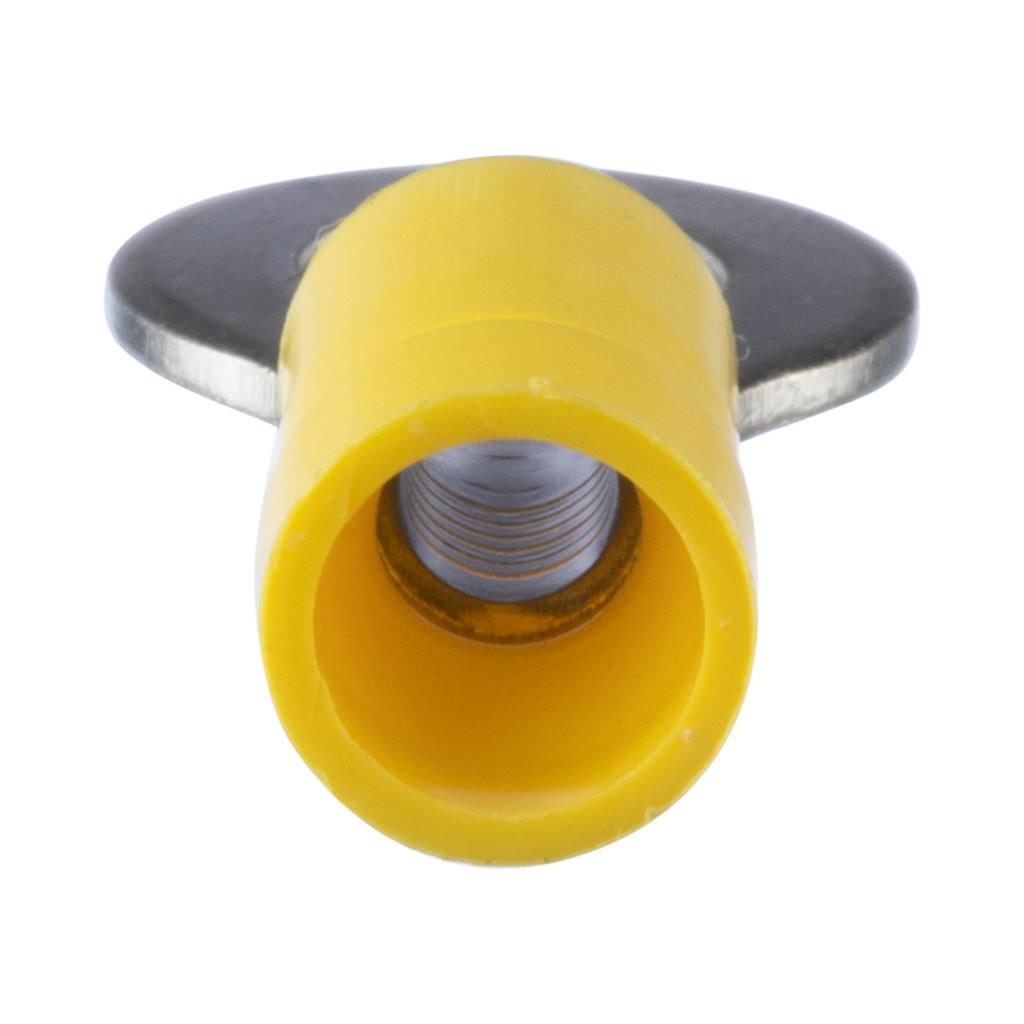

Panduit Corp StrongHold™ EV10-14RBK-Q is a yellow, insulated ring terminal designed for 10-12 AWG wire. This circular terminal features a 1/4" stud size and a tin contact finish on copper material. Engineered with a butted seam construction, it ensures robust connection integrity. The overall length is 1.160 inches (29.46mm) with an outer width of 0.470 inches (11.94mm) and a thickness of 0.030 inches (0.76mm). This component is suitable for free-hanging (in-line) mounting applications and is supplied in bulk packaging. Its reliability makes it a staple in industrial automation, automotive, and telecommunications sectors.
Additional Information
Series: StrongHold™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Insulated |
| Thickness | 0.030"" (0.76mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 1.160"" (29.46mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.470"" (11.94mm) |
| Contact Material | Copper |
