E10-6RB-Q
STRONGHOLD RING TERMINAL, NON-INManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

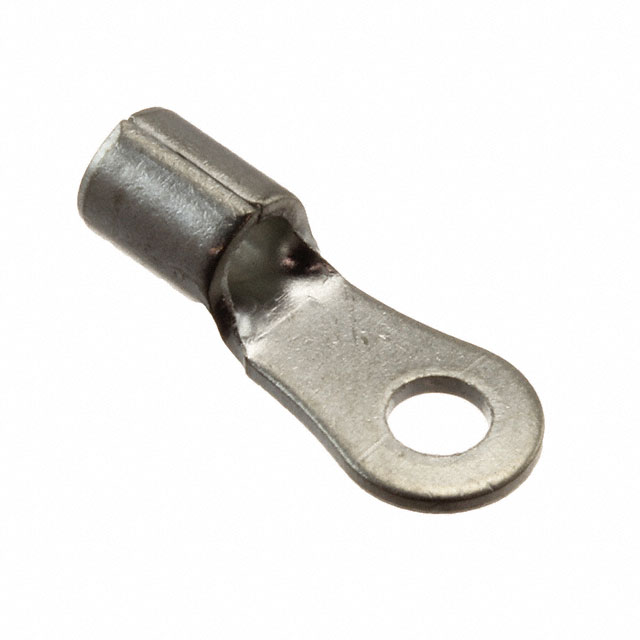

The Panduit Corp StrongHold™ E10-6RB-Q is a non-insulated circular ring terminal designed for robust electrical connections. This component, part of the StrongHold™ series, features a 6 stud configuration for secure mounting and accommodates wire gauges from 10 to 12 AWG. Constructed from copper with a tin contact finish, it ensures excellent conductivity and corrosion resistance. The terminal employs a butted seam construction and serrated termination for enhanced crimp reliability. With an overall length of 0.780 inches (19.81mm) and a thickness of 0.040 inches (1.02mm), it offers a compact yet durable solution. The E10-6RB-Q is suitable for applications within the industrial automation and telecommunications sectors, where dependable power and signal connections are critical. This component is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 6 Stud |
| Length - Overall | 0.780"" (19.81mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.310"" (7.87mm) |
| Contact Material | Copper |
