E10-14RB-Q
STRONGHOLD RING TERMINAL, NON-INManufacturer: Panduit Corp
Categories: Ring Connectors
Quality Control: Learn More

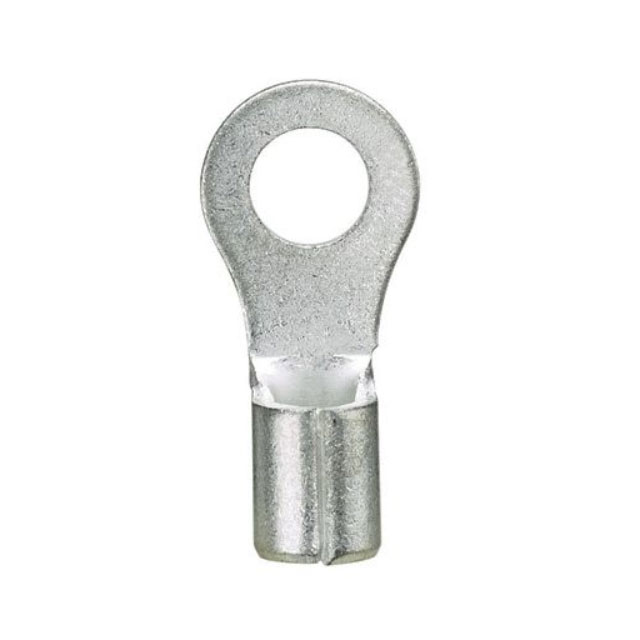

Panduit Corp StrongHold™ E10-14RB-Q is a non-insulated circular ring terminal designed for reliable electrical connections. This component features a 1/4 stud size and accommodates wire gauges from 10 to 12 AWG. Constructed with a copper contact material and a tin contact finish, it ensures excellent conductivity. The terminal utilizes a butted seam construction for durability and a serrated termination for enhanced wire grip. It is suitable for crimp termination and offers a free hanging (in-line) mounting type. The overall length is 0.960 inches (24.38mm) with an outer width of 0.520 inches (13.21mm) and a thickness of 0.040 inches (1.02mm). This terminal is commonly employed in industrial automation, power distribution, and general electronic assembly applications. It is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam, Serrated Termination |
| Packaging | Bulk |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Non-Insulated |
| Thickness | 0.040"" (1.02mm) |
| Terminal Type | Circular |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 0.960"" (24.38mm) |
| Termination | Crimp |
| Width - Outer Edges | 0.520"" (13.21mm) |
| Contact Material | Copper |
