EDV18-250P-L
PIGGYBACK DISCONNECT, VINYL BARRManufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

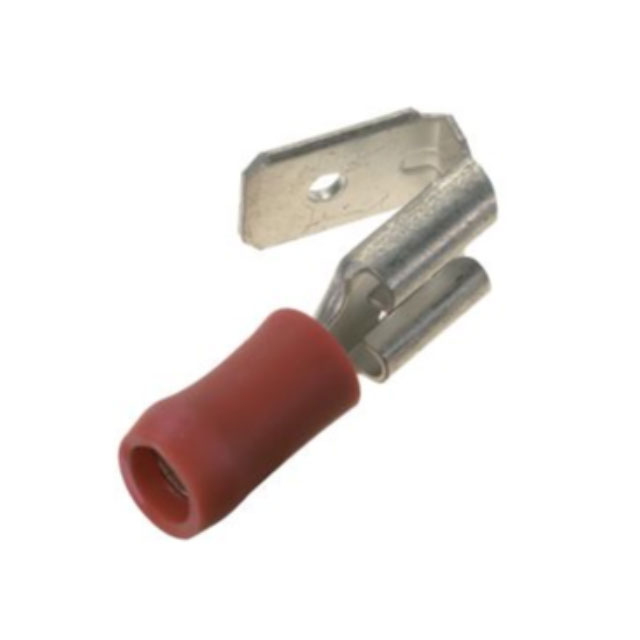

Panduit Corp StrongHold™ EDV18-250P-L is a red, vinyl-insulated, piggyback disconnect featuring a non-mating end insulated design. This component is a female and male quick connect, accepting 18-22 AWG wire with a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness. Constructed with tin-plated brass contacts and a free-hanging (in-line) mounting type, this stacked terminal offers a reliable crimp termination solution. Its overall length is 0.880" (22.35mm). This component is commonly utilized in industrial automation, telecommunications, and automotive electrical systems. The EDV18-250P-L is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Gender | Female and Male |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Non-Mating End Insulated |
| Terminal Type | Stacked |
| Length - Overall | 0.880"" (22.35mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Brass |
