EDV14-250P-L
PIGGYBACK DISCONNECT, VINYL BARRManufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

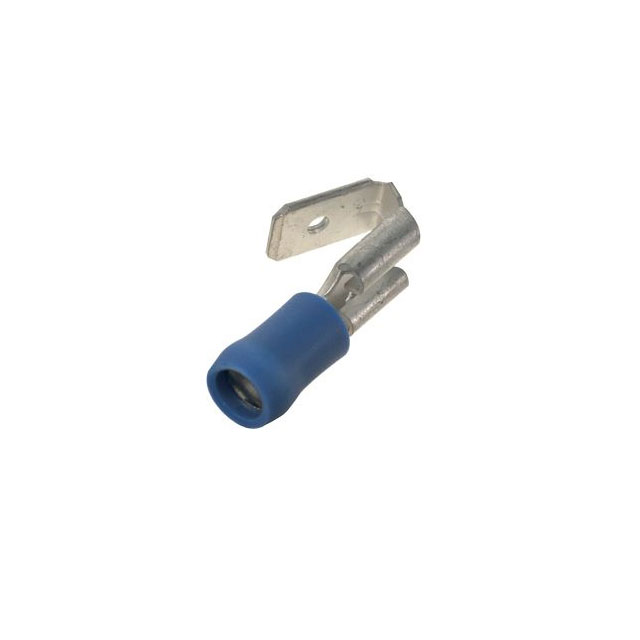

Panduit Corp StrongHold™ EDV14-250P-L is a vinyl-insulated, piggyback disconnect featuring a 0.250" (6.35mm) quick connect female and male configuration. Designed for 14-16 AWG wire, this crimp-style connector has a brass contact material with a tin finish. The non-mating end is insulated, and the overall length is 0.880" (22.35mm). The tab width is 0.250" (6.35mm) with a 0.032" (0.81mm) thickness. This component is suitable for applications in industrial automation and electrical systems. It is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Gender | Female and Male |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Non-Mating End Insulated |
| Terminal Type | Stacked |
| Length - Overall | 0.880"" (22.35mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Brass |
