EDV14-187MB-Q
STRONGHOLD MALE DISCONNECT, VINYManufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

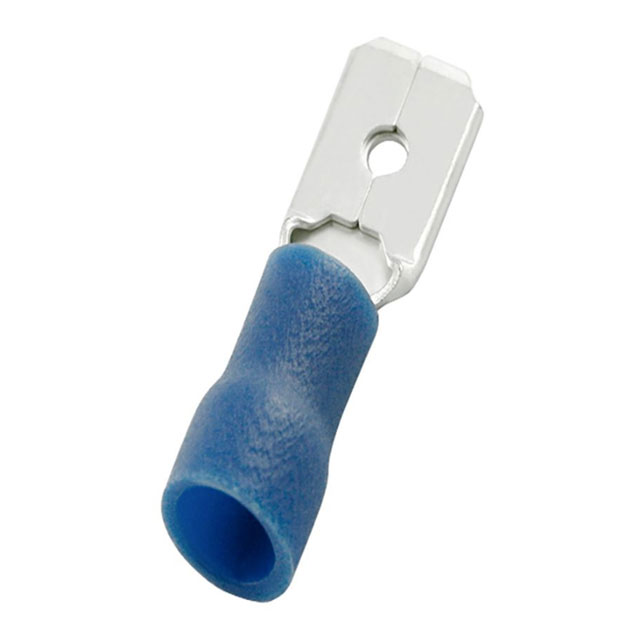

Panduit Corp StrongHold™ EDV14-187MB-Q is a male disconnect terminal featuring a 0.187-inch (4.75mm) tab width and 0.032-inch (0.81mm) tab thickness. Designed for 14-16 AWG wire, this crimp-style terminal utilizes a brass contact with tin plating for reliable conductivity. The non-mating end is insulated, and the overall length is 0.750 inches (19.05mm). Its free-hanging, in-line mounting type and serrated termination enhance connection security. This component is suitable for applications in the automotive and industrial sectors where robust electrical connections are critical. Packaging is supplied in bulk.
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Gender | Male |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Non-Mating End Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.750"" (19.05mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.187"" (4.75mm) |
| Tab Length | - |
| Contact Material | Brass |
