ED18-250MB-Q
STRONGHOLD MALE DISCONNECT, NON-Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

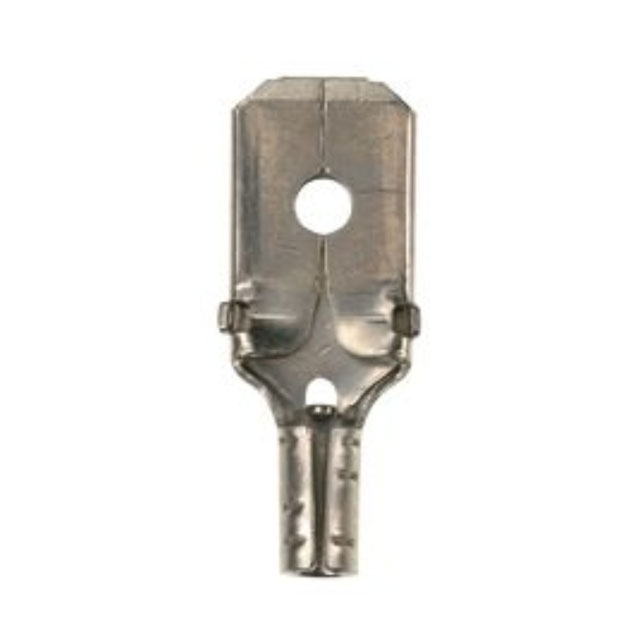

Panduit Corp StrongHold™ ED18-250MB-Q. This non-insulated, male quick connect terminal is designed for reliable wire termination. Featuring a 0.250" (6.35mm) wide by 0.032" (0.81mm) thick tab, it accommodates wire gauges from 18 to 22 AWG. The terminal is constructed from brass with a nickel contact finish for durability and conductivity. Its free-hanging, in-line mounting type simplifies assembly in a variety of applications. The overall length is 0.690" (17.53mm). This component is commonly utilized in industrial automation, telecommunications, and transportation sectors. Supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Gender | Male |
| Contact Finish | Nickel |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.690"" (17.53mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Brass |
