ED18-250-Q
STRONGHOLD FEMALE DISCONNECT, NOManufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

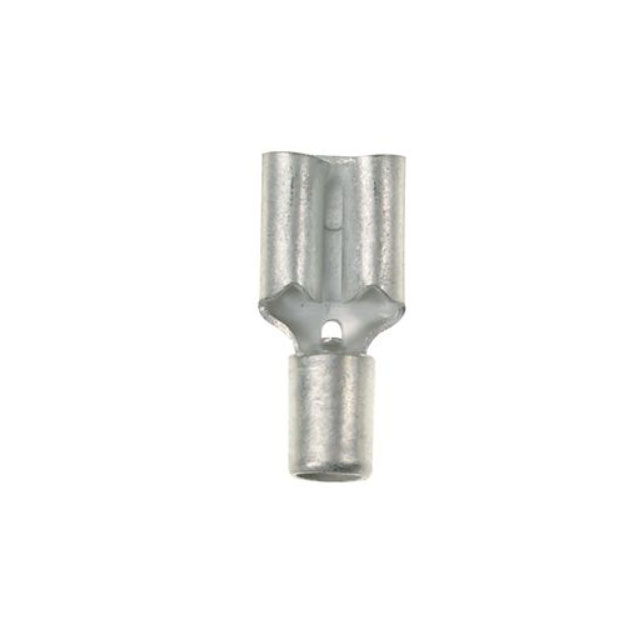

Panduit Corp StrongHold™ ED18-250-Q is a non-insulated, female quick connect terminal designed for robust electrical connections. This component features a 0.250" (6.35mm) tab width with a 0.032" (0.81mm) thickness, ensuring secure mating with compatible male terminals. Engineered for crimp termination, it is suitable for wire gauges ranging from 18 to 22 AWG, utilizing a brass contact material with a tin finish for optimal conductivity and corrosion resistance. The free-hanging (in-line) mounting type facilitates straightforward integration into various wiring harnesses and assemblies. This terminal is commonly employed in industrial automation, automotive systems, and appliance manufacturing environments where reliable and durable electrical connections are critical. Packaged in bulk quantities, it supports high-volume production requirements.
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.660"" (16.76mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Brass |
