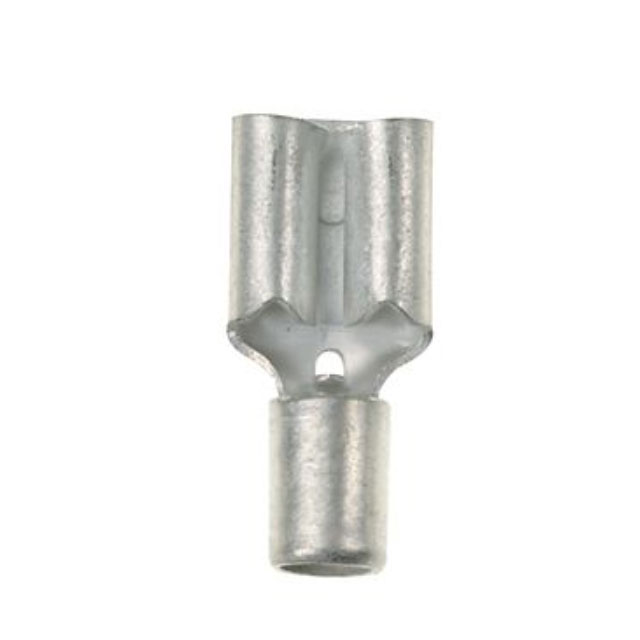

ED18-250-L
STRONGHOLD FEMALE DISCONNECT, NOManufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More
Panduit Corp StrongHold™ ED18-250-L is a non-insulated, female quick connect terminal designed for reliable wire termination. This component features a 0.250" (6.35mm) tab width and a 0.032" (0.81mm) tab thickness, suitable for mating with standard female receptacles. Engineered for 18-22 AWG wire gauges, the ED18-250-L utilizes a brass contact material with a tin finish for optimal conductivity and durability. The terminal employs a crimp termination method, ensuring a secure and robust connection. Its free-hanging, in-line mounting type facilitates straightforward integration into various wiring harnesses and electronic assemblies. This component is commonly applied in industrial automation, telecommunications infrastructure, and automotive electronics, where dependable electrical connections are critical. It is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.660"" (16.76mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Brass |
