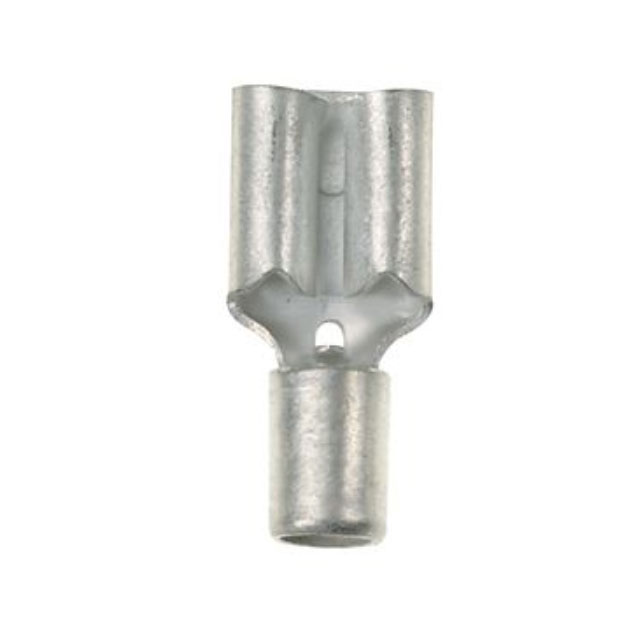

ED18-188-L
STRONGHOLD FEMALE DISCONNECT, NOManufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More
Panduit Corp StrongHold™ ED18-188-L is a non-insulated, female quick connect terminal designed for reliable electrical connections. This component features a 0.187 inch (4.75mm) tab width and a 0.020 inch (0.51mm) tab thickness, suitable for mating with standard receptacles. Engineered for 18-22 AWG wire gauges, it utilizes a crimp termination method to ensure secure and durable connections. The brass contact material, plated with tin for enhanced conductivity and corrosion resistance, is complemented by serrated termination features for improved grip. With a free hanging, in-line mounting type, this component finds application in industrial automation, automotive, and general electronics manufacturing. The overall length measures 0.580 inches (14.73mm).
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.580"" (14.73mm) |
| Termination | Crimp |
| Tab Thickness | 0.020"" (0.51mm) |
| Tab Width | 0.187"" (4.75mm) |
| Tab Length | - |
| Contact Material | Brass |
