ED14-250-Q
STRONGHOLD FEMALE DISCONNECT, NOManufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

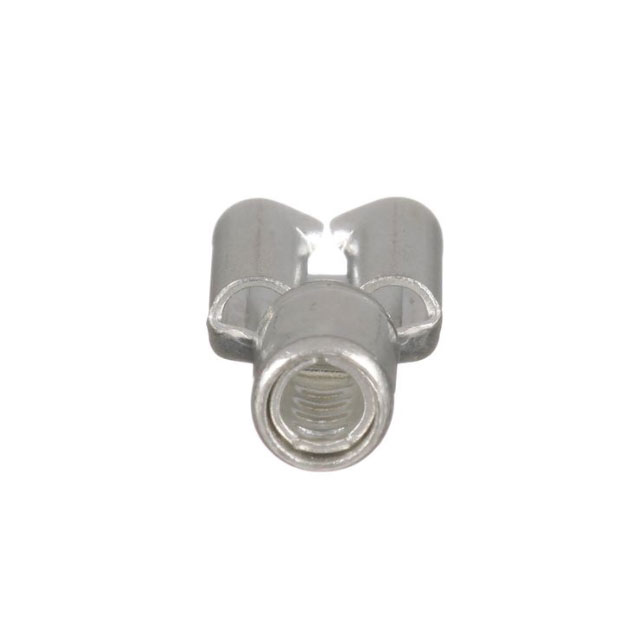

Panduit Corp StrongHold™ ED14-250-Q is a non-insulated, female Quick Connect terminal designed for 14-16 AWG wire. This component features a 0.250" (6.35mm) tab width and a 0.032" (0.81mm) tab thickness, manufactured with brass for conductivity and finished with tin plating. The overall length is 0.660" (16.76mm). It is suitable for free-hanging (in-line) mounting and terminates via crimping. This terminal is commonly utilized in industrial automation, telecommunications, and automotive applications where reliable electrical connections are critical. The ED14-250-Q is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.660"" (16.76mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Brass |
