ED14-188-L
STRONGHOLD FEMALE DISCONNECT, NOManufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

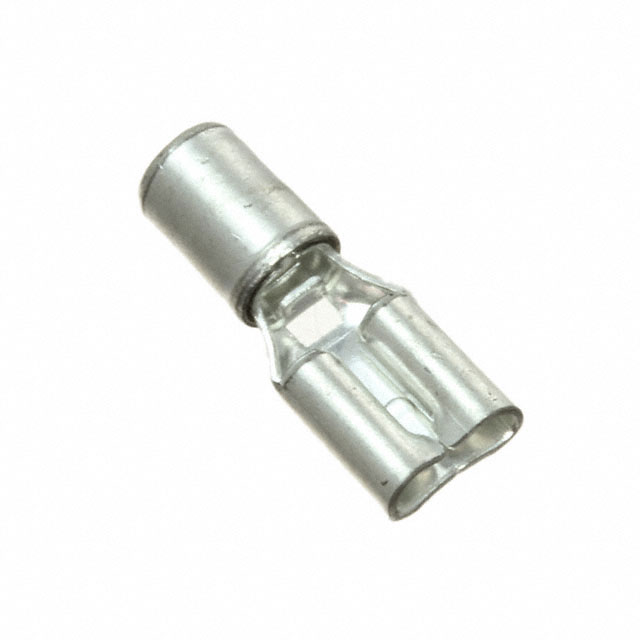

Panduit Corp StrongHold™ ED14-188-L is a non-insulated, female quick connect terminal designed for 14-16 AWG wire. This component features a 0.187" (4.75mm) tab width with a 0.020" (0.51mm) thickness, ensuring reliable mating with compatible male disconnects. Constructed from brass with a tin contact finish, it offers durability and excellent conductivity. The serrated termination provides enhanced wire grip and strain relief for secure crimping. Its free-hanging, in-line mounting type makes it suitable for various wiring applications. This terminal is commonly employed in industrial automation, automotive, and general electronics manufacturing where robust and reliable electrical connections are critical. The ED14-188-L is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.580"" (14.73mm) |
| Termination | Crimp |
| Tab Thickness | 0.020"" (0.51mm) |
| Tab Width | 0.187"" (4.75mm) |
| Tab Length | - |
| Contact Material | Brass |
