ED10-250M-Q
STRONGHOLD MALE DISCONNECT, NON-Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

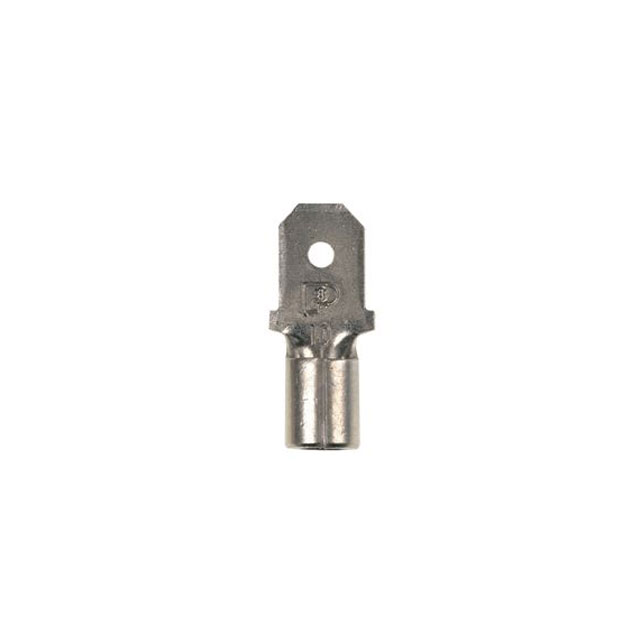

Panduit Corp StrongHold™ ED10-250M-Q is a non-insulated, male quick connect terminal designed for crimp termination. This component features a 0.250" (6.35mm) wide tab and a 0.032" (0.81mm) thickness, suitable for wire gauges 10-12 AWG. The terminal is constructed from copper with a nickel contact finish and incorporates a brazed seam for enhanced durability. Its overall length is 0.720" (18.29mm). The ED10-250M-Q is utilized in various industrial applications, including automotive and telecommunications equipment. The component is supplied in bulk packaging.
Additional Information
Series: StrongHold™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Gender | Male |
| Contact Finish | Nickel |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.720"" (18.29mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Copper |
