DV18-250P-MY
CONN QC RCPT/TAB 18-22AWG 0.250Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

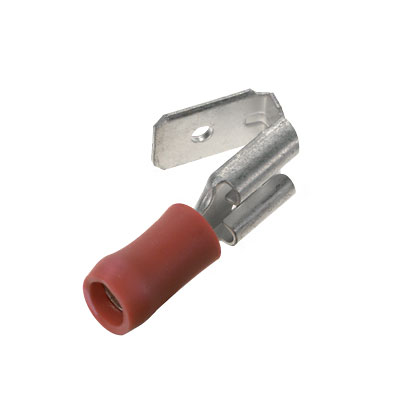

Panduit Corp Pan-Term® DV18-250P-MY is a red, bulk-packaged quick connect receptacle and tab set designed for 18-22 AWG wire gauges. This free-hanging (in-line) component features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness. The connector utilizes a crimp termination method with serrated termination features for enhanced electrical performance. The non-mating end is insulated, ensuring proper connection isolation. This component is suitable for applications in automotive, industrial automation, and general electronics manufacturing.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Gender | Female and Male |
| Contact Finish | - |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Non-Mating End Insulated |
| Terminal Type | Stacked |
| Length - Overall | 0.880"" (22.35mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | - |
