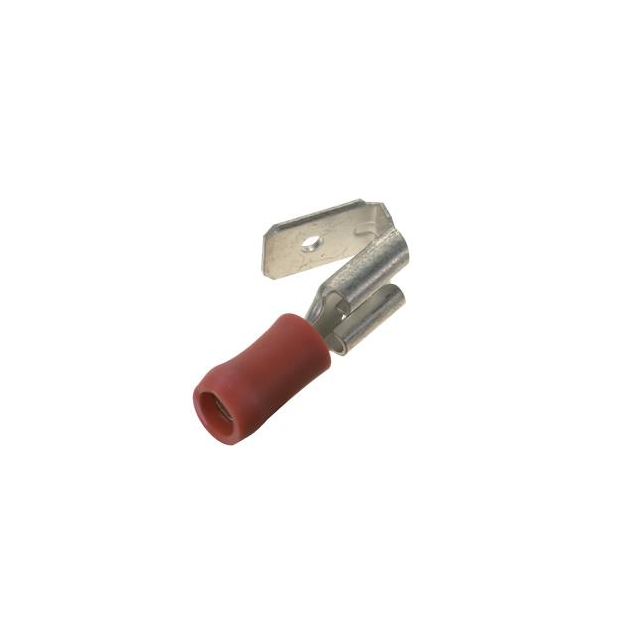

DV18-250P-LYY
CONN QC RCPT/TAB 18-22AWG 0.250Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More
0.250"" (6.35mm) Quick Connect Female and Male 18-22 AWG Crimp Connector Non-Mating End Insulated
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Gender | Female and Male |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Non-Mating End Insulated |
| Terminal Type | Stacked |
| Length - Overall | 0.880"" (22.35mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Brass |
