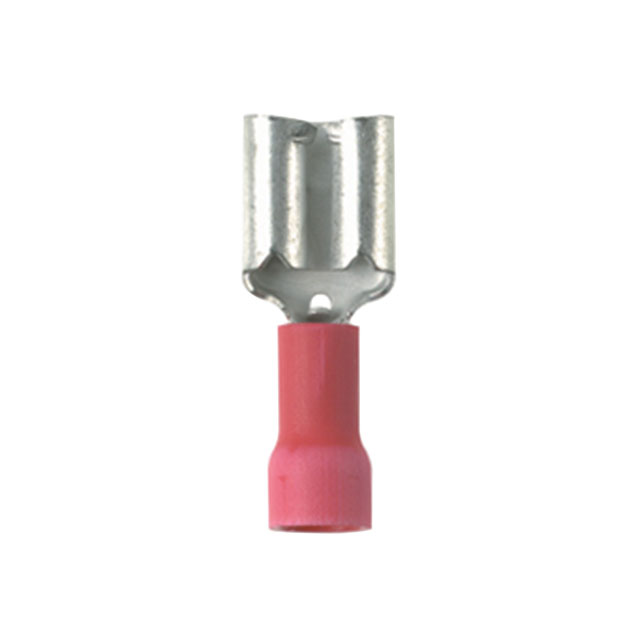

DV18-188B-M
CONN QC RCPT 18-22AWG 0.187Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More
Panduit Corp Pan-Term® DV18-188B-M is a female quick connect receptacle designed for 18-22 AWG wire. This component features a 0.187" (4.75mm) tab width and a 0.020" (0.51mm) tab thickness, with a non-mating end insulation for enhanced electrical safety. The brass contact material is finished with tin for reliable conductivity, and the connector utilizes a butted seam construction. With a free hanging (in-line) mounting type and crimp termination, the DV18-188B-M is suitable for various industrial applications including automotive, industrial automation, and appliance manufacturing where secure and efficient wire termination is critical. The overall length is 0.760" (19.30mm).
Additional Information
Series: Pan-Term®RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Non-Mating End Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.760"" (19.30mm) |
| Termination | Crimp |
| Tab Thickness | 0.020"" (0.51mm) |
| Tab Width | 0.187"" (4.75mm) |
| Tab Length | - |
| Contact Material | Brass |
