DV14-250P-L
CONN QC RCPT/TAB 14-16AWG 0.250Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

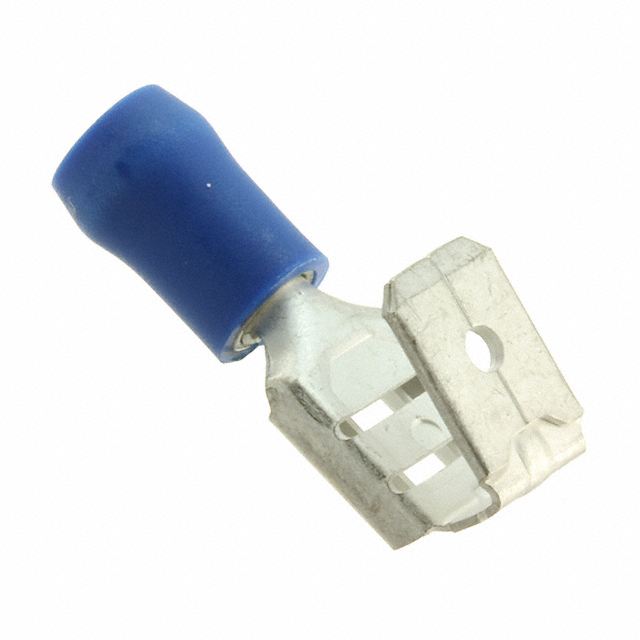

Panduit Corp Pan-Term® DV14-250P-L is a blue, bulk-packaged quick connect receptacle and tab. This component features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness, designed for 14-16 AWG wire gauges. The termination is a crimp type, with a non-mating end insulated design and serrated termination features for enhanced connection integrity. Its overall length is 0.880" (22.35mm) and it supports a free hanging (in-line) mounting type. This connector is commonly utilized in industrial automation, telecommunications, and automotive applications where reliable and secure wire termination is critical.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Gender | Female and Male |
| Contact Finish | - |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Non-Mating End Insulated |
| Terminal Type | Stacked |
| Length - Overall | 0.880"" (22.35mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | - |
