DV14-250MB-M
CONN QC TAB 14-16AWG 0.250 CRIMPManufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

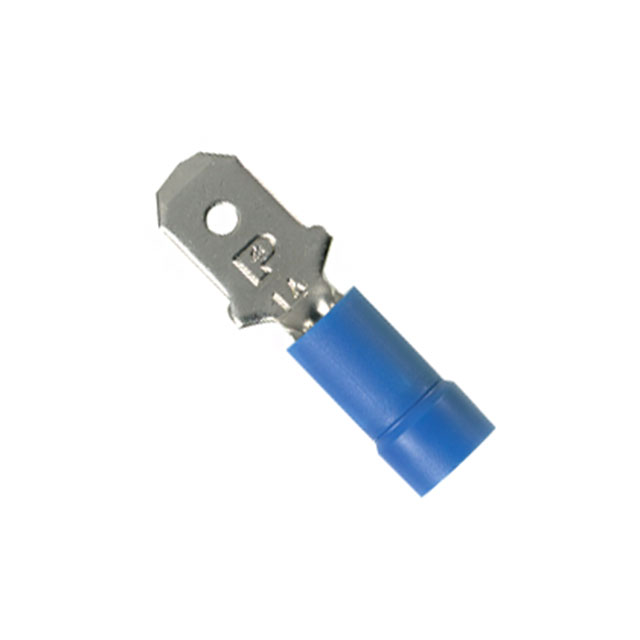

Panduit Corp Pan-Term® DV14-250MB-M is a male, non-mating end insulated quick connect terminal designed for 14-16 AWG wire. This component features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness with a nickel contact finish over a copper contact material. The overall length is 0.960" (24.38mm). Termination is achieved via crimp, and the mounting type is free hanging for in-line applications. This terminal is commonly utilized in industrial automation, telecommunications, and automotive sectors where reliable electrical connections are critical. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Gender | Male |
| Contact Finish | Nickel |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Non-Mating End Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.960"" (24.38mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Copper |
