DV10-250M-D
CONN QC TAB 10-12AWG 0.250 CRIMPManufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

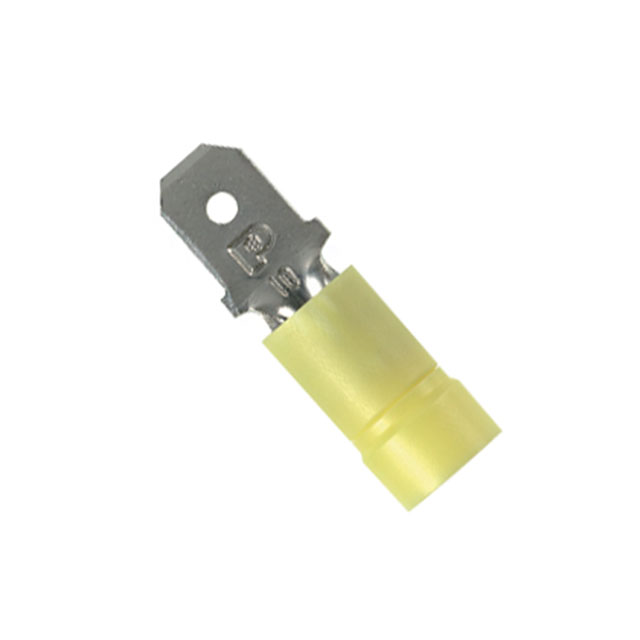

Panduit Corp Pan-Term® DV10-250M-D is a male, .250" (6.35mm) quick connect terminal designed for 10-12 AWG wire. This crimp-style connector features a non-mating end insulated design for enhanced safety and reliability. Constructed with a copper contact material and nickel plating, it ensures excellent conductivity. The terminal boasts a brazed seam for superior durability. With a .032" (0.81mm) tab thickness and .250" (6.35mm) tab width, it offers robust connection capabilities. The overall length is .980" (24.89mm). This component is suitable for in-line, free-hanging applications and finds use in industrial automation, automotive, and telecommunications sectors. Packaged in bulk, the yellow insulation color aids in identification.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Brazed Seam |
| Packaging | Bulk |
| Gender | Male |
| Contact Finish | Nickel |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Non-Mating End Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.980"" (24.89mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Copper |
