DV10-250C-D
CONN QC RCPT 10-12AWG 0.250Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

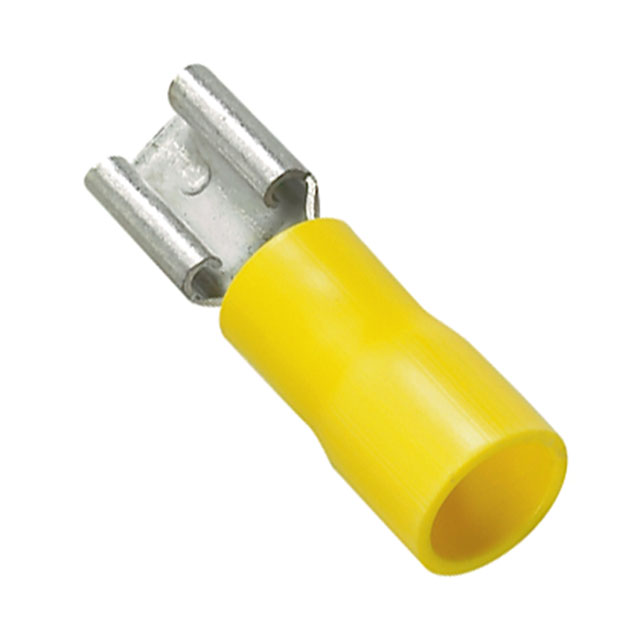

Panduit Corp Pan-Term® DV10-250C-D is a female quick connect receptacle designed for 10-12 AWG wire. This component features a standard terminal type with a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness. The contact material is brass with a tin finish. The connector is non-mating end insulated, providing enhanced electrical isolation. With a free hanging (in-line) mounting type, it offers flexibility in application. The overall length is 1.040" (26.42mm). This crimp-terminated connector is suitable for various industrial applications including industrial automation, telecommunications, and power distribution systems. Supplied in bulk packaging, the yellow color aids in wire identification.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Non-Mating End Insulated |
| Terminal Type | Standard |
| Length - Overall | 1.040"" (26.42mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Brass |
