DV10-250-E
CONN QC RCPT 10-12AWG 0.250Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

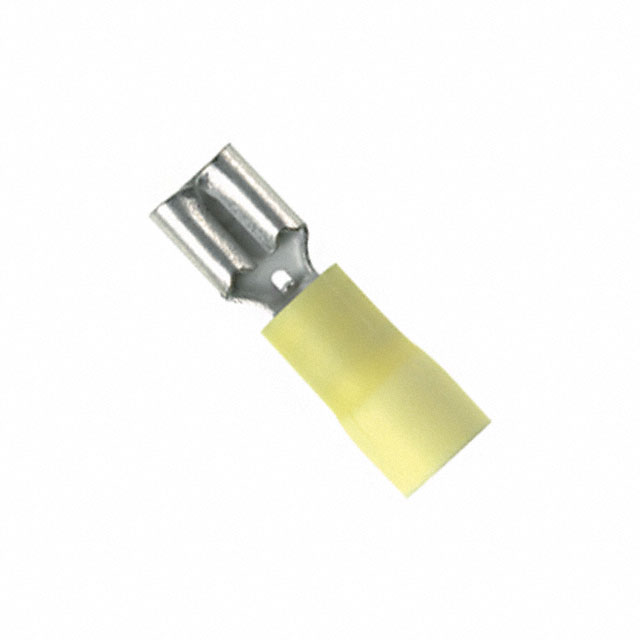

Panduit Corp's Pan-Term® DV10-250-E is a female quick connect receptacle designed for 10-12 AWG wire. This crimp terminal features a 0.250" (6.35mm) tab width with a 0.032" (0.81mm) thickness. The brass contact offers tin plating for reliable conductivity. Its non-mating end is insulated, providing enhanced electrical isolation. The connector's overall length is 1.030" (26.16mm) and it is intended for free-hanging, in-line mounting. Serrated termination ensures secure wire grip. This component is commonly utilized in industrial automation, automotive, and power distribution applications.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Non-Mating End Insulated |
| Terminal Type | Standard |
| Length - Overall | 1.030"" (26.16mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Brass |
