DR14-206-C
CONN QC RCPT 14-16AWG 0.187Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

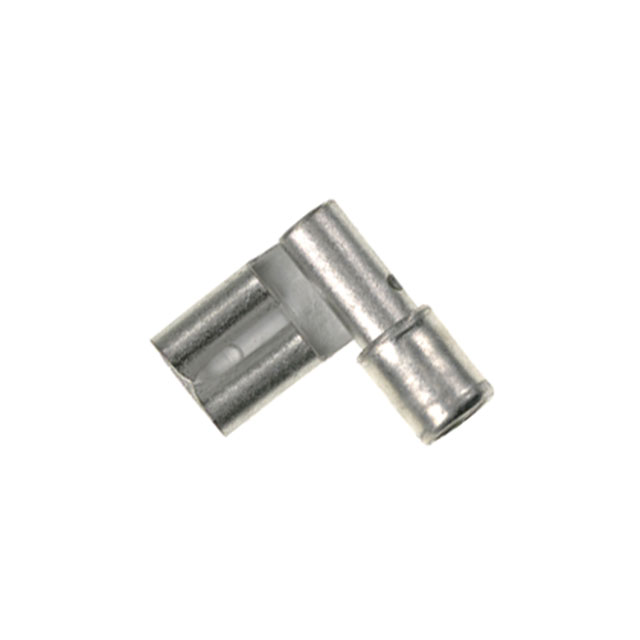

Panduit Corp Pan-Term® DR14-206-C is a non-insulated, female quick connect receptacle designed for 14-16 AWG wire. This component features a brass contact material with a tin finish for reliable conductivity. The termination method is crimp, with a serrated termination for enhanced grip. The tab dimensions are 0.187" (4.75mm) and 0.205" (5.21mm) wide, with a thickness of 0.020" (0.51mm). Available in bulk packaging, it is suitable for free hanging (in-line) or right-angle mounting configurations. The terminal type is classified as angled (90°) or flag. This connector is utilized in industries requiring robust electrical connections, such as automotive and industrial automation.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 14-16 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Angled - 90°, Flag |
| Length - Overall | - |
| Termination | Crimp |
| Tab Thickness | 0.020"" (0.51mm) |
| Tab Width | 0.187"" (4.75mm), 0.205"" (5.21mm) |
| Tab Length | - |
| Contact Material | Brass |
