DPF18206FIBR-3K
CONN QC RCPT 18-22AWG 0.187Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

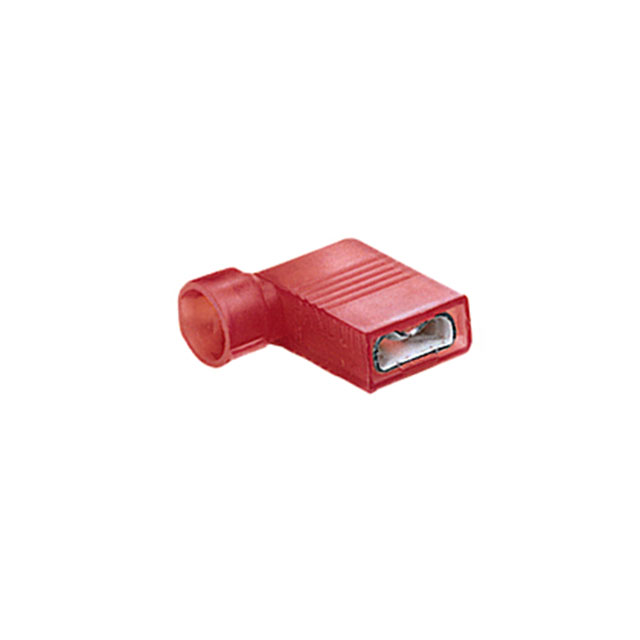

Panduit Corp DPF18206FIBR-3K, a DiscoGrip™, ReelSmart™ series Quick Connect Female connector, is designed for 18-22 AWG wire. This fully insulated connector features a red, tin-plated brass contact with a butted seam for reliable crimp termination. With a standard terminal type, it offers a 0.187" (4.75mm) and 0.205" (5.21mm) tab width and a tab thickness of 0.020" (0.51mm). The overall length is 0.780" (19.81mm). This component is suitable for free-hanging, in-line mounting and is supplied on tape and reel. It finds application in industrial automation, automotive, and telecommunications sectors.
Additional Information
Series: DiscoGrip™, ReelSmart™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Tape & Reel (TR) |
| Gender | Female |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Fully Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.780"" (19.81mm) |
| Termination | Crimp |
| Tab Thickness | 0.020"" (0.51mm) |
| Tab Width | 0.187"" (4.75mm), 0.205"" (5.21mm) |
| Tab Length | - |
| Contact Material | Brass |
