DPF18-250FIM-L
CONN QC TAB 18-22AWG 0.250 CRIMPManufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

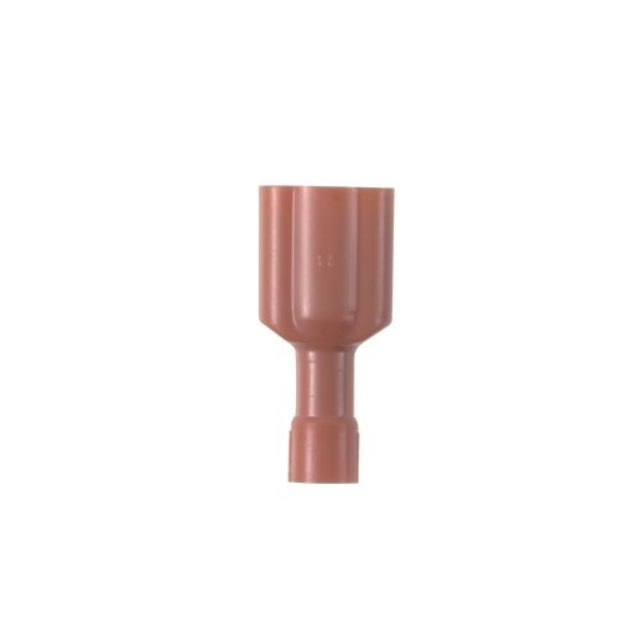

Panduit Corp DPF18-250FIM-L is a fully insulated male DiscoGrip™ series quick connect terminal designed for 18-22 AWG wire. This component features a 0.250-inch (6.35mm) tab width and 0.032-inch (0.81mm) tab thickness, terminating via crimp. The brass contact material is finished with nickel, and the connector has a red insulation. With an overall length of 0.900 inches (22.86mm), it is suitable for free-hanging, in-line applications. This terminal is commonly utilized in industrial automation, automotive assembly, and power distribution systems requiring reliable and insulated electrical connections.
Additional Information
Series: DiscoGrip™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Gender | Male |
| Contact Finish | Nickel |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Fully Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.900"" (22.86mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Brass |
