DNH18-250FIM-Q
CONN QC TAB 18-22AWG 0.250 CRIMPManufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

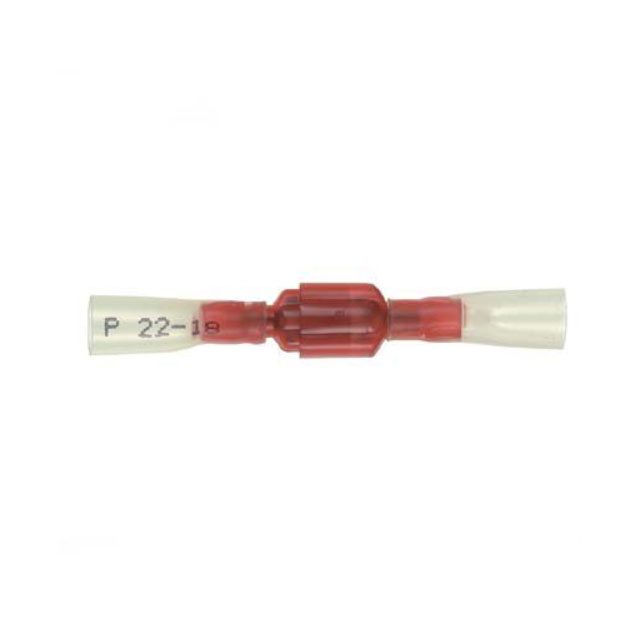

Panduit Corp Pan-Term® DNH18-250FIM-Q is a fully insulated, male quick connect terminal designed for 18-22 AWG wire gauges. This component features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness, with a brass contact material and tin contact finish. The insulation is a heat shrink type, providing robust protection in a free-hanging, in-line mounting configuration. This terminal is suitable for applications requiring reliable electrical connections in industries such as industrial automation, telecommunications, and automotive manufacturing. It is supplied in bulk packaging for efficient integration into production workflows.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Gender | Male |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Fully Insulated Heat Shrink |
| Terminal Type | Standard |
| Length - Overall | 1.500"" (38.10mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Brass |
