DNH18-250FIB-Q
CONN QC RCPT 18-22AWG 0.250Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

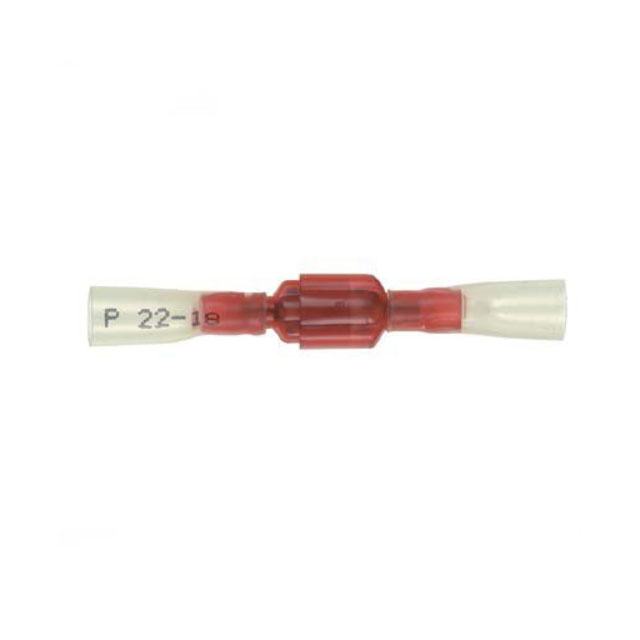

Panduit Corp Pan-Term® DNH18-250FIB-Q is a female, fully insulated heat shrink quick connect receptacle designed for 18-22 AWG wire. This component features a 0.250" (6.35mm) tab width with a 0.032" (0.81mm) thickness, offering a secure termination via a crimp connection. The contact material is brass with a tin finish, and the insulation is a robust heat shrink. With a butted seam construction and a free hanging (in-line) mounting type, this connector is suitable for applications requiring reliable electrical connections in industries such as automotive and industrial automation. The overall length is 1.440" (36.58mm).
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Fully Insulated Heat Shrink |
| Terminal Type | Standard |
| Length - Overall | 1.440"" (36.58mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Brass |
