DNH14-250FIB-Q
CONN QC RCPT 14-16AWG 0.250Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

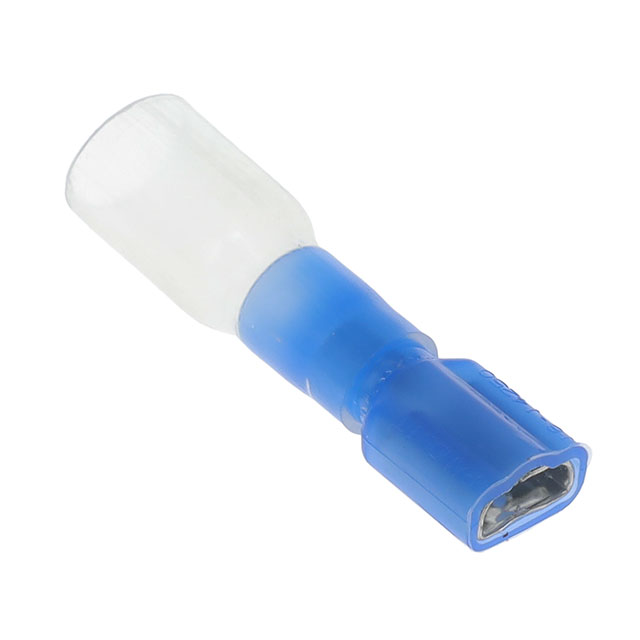

Panduit Corp Pan-Term® DNH14-250FIB-Q is a blue, fully insulated heat shrink female quick connect receptacle designed for 14-16 AWG wire. This component features a 0.250 inch (6.35mm) tab width with a 0.032 inch (0.81mm) thickness and a tin contact finish on brass material. The overall length is 1.440 inches (36.58mm). It is supplied in bulk packaging and utilizes a crimp termination method. This connector is suitable for in-line, free-hanging applications and is commonly found in industrial automation, automotive, and telecommunications sectors.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Fully Insulated Heat Shrink |
| Terminal Type | Standard |
| Length - Overall | 1.440"" (36.58mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Brass |
