DNG14-188FB-3K
CONN QC RCPT 14-16AWG 0.187Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More
Panduit Corp DNG14-188FB-3K is a ReelSmart™ Supra-Grip™ series female quick connect receptacle designed for 14-16 AWG wire. This fully insulated connector features a 0.187 inch (4.75mm) tab width and a 0.020 inch (0.51mm) tab thickness. The brass contact material is finished with tin for reliable conductivity, and the connector incorporates a butted seam for enhanced durability. With an overall length of 0.890 inches (22.61mm), it is suitable for free hanging (in-line) mounting. This component is supplied on tape and reel for efficient automated assembly, commonly utilized in industrial automation, automotive, and telecommunications applications.
Additional Information
Series: ReelSmart™ Supra-Grip™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Tape & Reel (TR) |
| Gender | Female |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Fully Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.890"" (22.61mm) |
| Termination | Crimp |
| Tab Thickness | 0.020"" (0.51mm) |
| Tab Width | 0.187"" (4.75mm) |
| Tab Length | - |
| Contact Material | Brass |
Request a Quote
Clients Also Buy

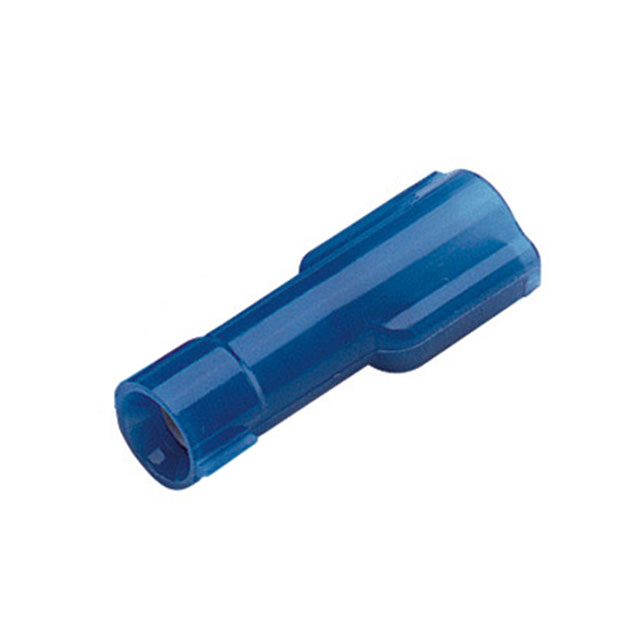

DNG14-187FB-3K
CONN QC RCPT 14-16AWG 0.187
DNG18-188FB-3K
CONN QC RCPT 18-22AWG 0.187

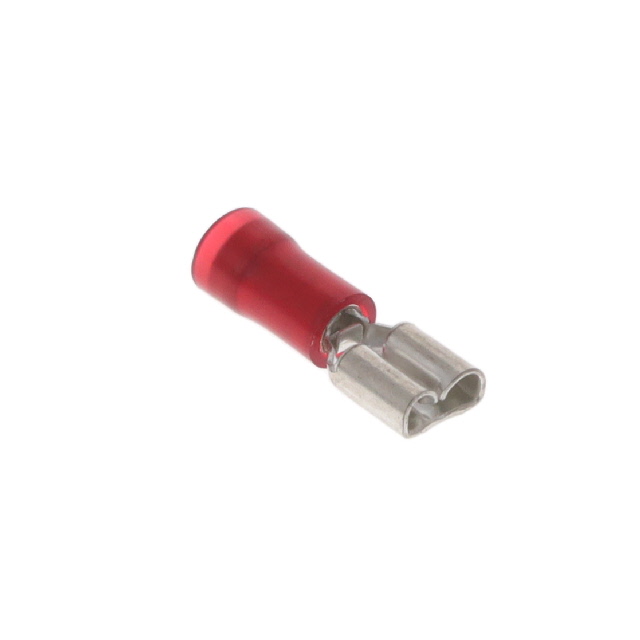

DNFR18-206FIB-C
