DNFR18-250B-X
CONN QC RCPT 18-22AWG 0.250Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

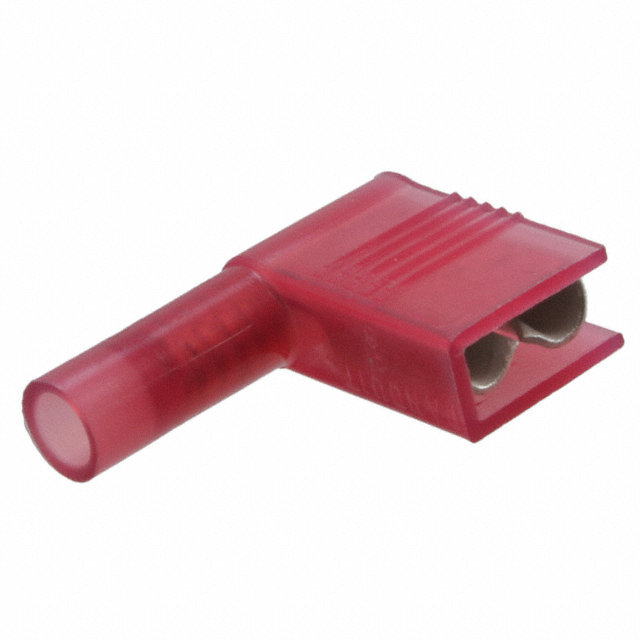

Panduit Corp Pan-Term® DNFR18-250B-X is a fully insulated, female quick connect receptacle designed for 18-22 AWG wire. This component features a 0.250" (6.35mm) tab width and a 0.032" (0.81mm) tab thickness, with a tab terminal type of angled – 90°, flag. The contact material is brass with a tin finish, and the insulation is fully insulated. It utilizes a crimp termination method and has a butted seam feature. The connector is suitable for free hanging (in-line) and right-angle mounting. This component is commonly utilized in automotive, industrial automation, and telecommunications applications where reliable electrical connections are critical.
Additional Information
Series: Pan-Term®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 18-22 AWG |
| Insulation | Fully Insulated |
| Terminal Type | Angled - 90°, Flag |
| Length - Overall | - |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Brass |
