DNFR14-250B-X
CONN QC RCPT 14-16AWG 0.250Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

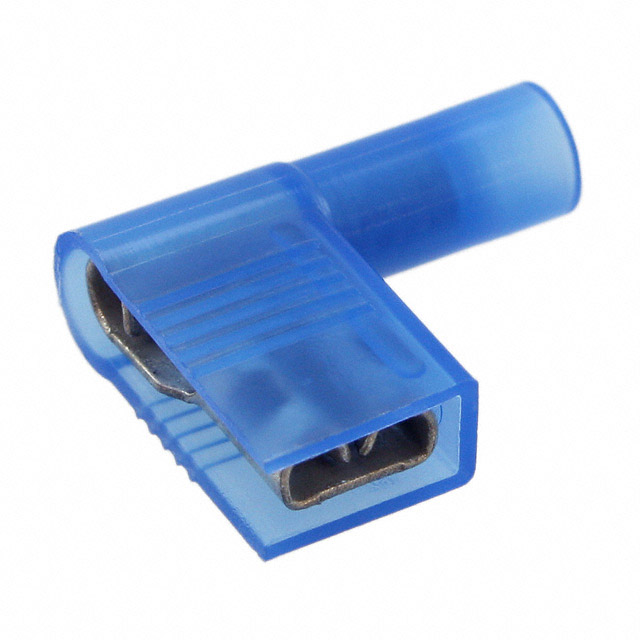

Panduit Corp Pan-Term® Series, DNFR14-250B-X. This female quick connect receptacle features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness. Designed for 14-16 AWG wire, it utilizes a crimp termination method. The blue, fully insulated design incorporates a butted seam for enhanced reliability. The contact material is brass with a tin plating for optimal conductivity. This component is suitable for free hanging (in-line) and right-angle mounting configurations. Applications include industrial automation, power distribution, and automotive electronics.
Additional Information
Series: Pan-Term®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 14-16 AWG |
| Insulation | Fully Insulated |
| Terminal Type | Angled - 90°, Flag |
| Length - Overall | - |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Brass |
