DNFR14-205FIB-L
CONN QC RCPT 14-16AWG 0.187Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

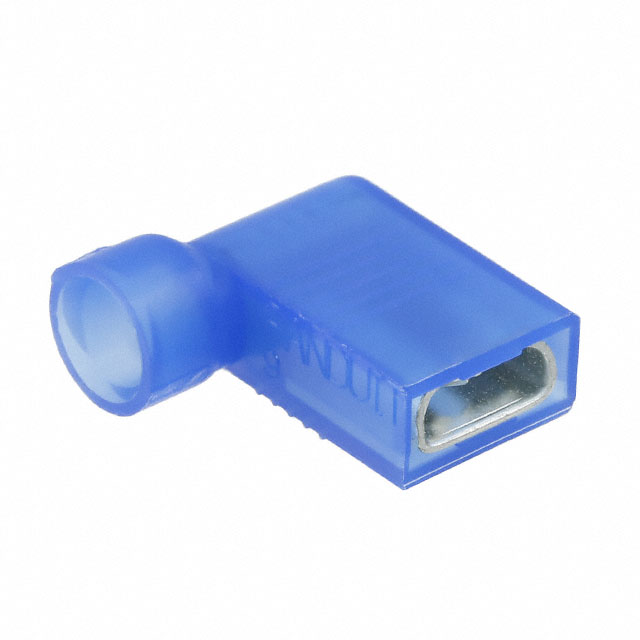

Panduit Corp Pan-Term® Series female quick connect receptacle, part number DNFR14-205FIB-L. This fully insulated connector is designed for 14-16 AWG wire with a crimp termination. It features brass contact material with a tin finish, a tab width of 0.187" (4.75mm) and 0.205" (5.21mm), and a tab thickness of 0.032" (0.81mm). The terminal type is angled at 90°, functioning as a flag connector. Mounting options include free hanging (in-line) and right angle configurations. This component is commonly utilized in industrial automation, automotive, and telecommunications applications. Supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 14-16 AWG |
| Insulation | Fully Insulated |
| Terminal Type | Angled - 90°, Flag |
| Length - Overall | - |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.187"" (4.75mm), 0.205"" (5.21mm) |
| Tab Length | - |
| Contact Material | Brass |
