DNF18-250M-M
CONN QC TAB 18-22AWG 0.250 CRIMPManufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

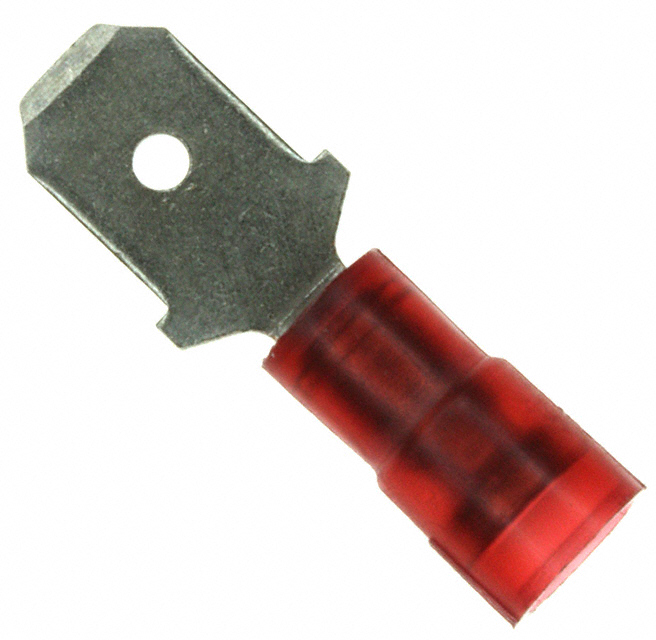

Panduit Corp Pan-Term® DNF18-250M-M is a male, free-hanging (in-line) quick connect terminal designed for 18-22 AWG wire. This component features a 0.250" (6.35mm) tab width with a 0.032" (0.81mm) thickness and employs a serrated termination for enhanced conductivity. The contact material is copper with a nickel finish. The terminal is non-mating end insulated, with a red color insulation. This crimp-style connector offers a reliable connection in industrial automation, automotive, and telecommunications applications. Its overall length is 0.900" (22.86mm).
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Gender | Male |
| Contact Finish | Nickel |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Non-Mating End Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.900"" (22.86mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Copper |
