DNF18-205-C
CONN QC RCPT 18-22AWG 0.187Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

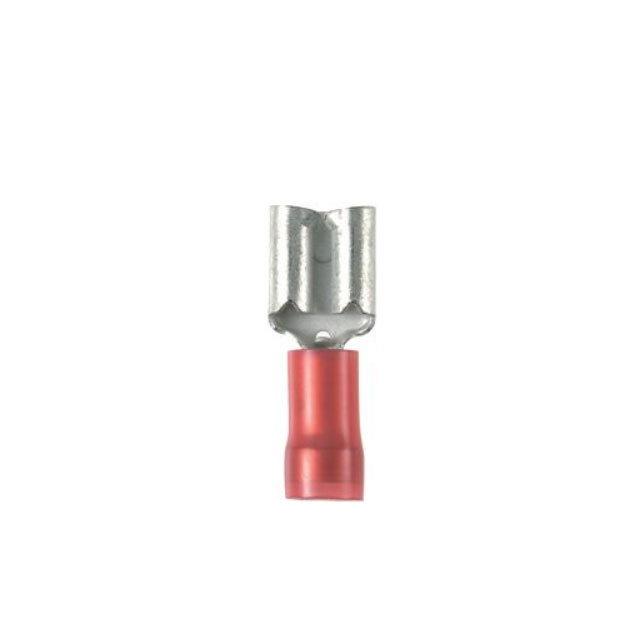

Panduit Corp Pan-Term® DNF18-205-C is a female quick connect receptacle designed for 18-22 AWG wire sizes. This component features a non-mating end insulation and a brass contact material with a tin finish for reliable conductivity. The terminal type is standard, with a crimp termination method. Key dimensions include a tab width of 0.187" (4.75mm) and 0.205" (5.21mm), and an overall length of 0.760" (19.30mm). The connector is mounted free hanging (in-line) and includes serrated termination for enhanced wire grip. This Panduit Corp component is suitable for applications in industrial automation, automotive, and general electronics manufacturing.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Non-Mating End Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.760"" (19.30mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.187"" (4.75mm), 0.205"" (5.21mm) |
| Tab Length | - |
| Contact Material | Brass |
