DNF18-188-M
CONN QC RCPT 18-22AWG 0.187Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

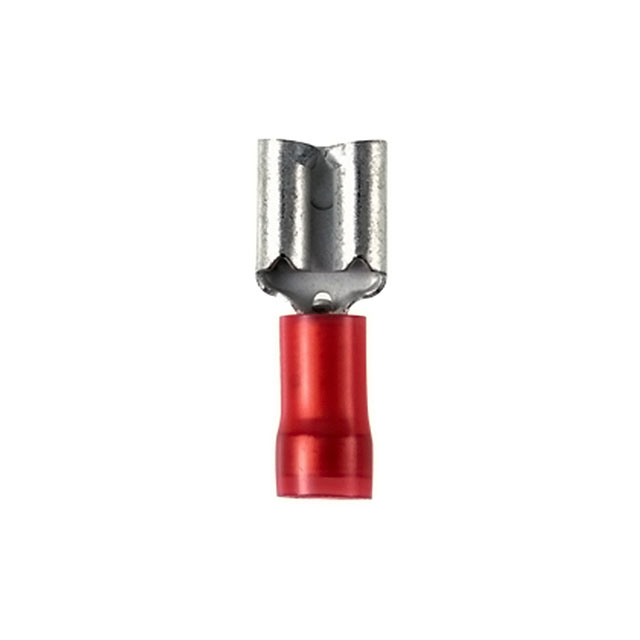

Panduit Corp Pan-Term® DNF18-188-M is a female quick connect receptacle designed for 18-22 AWG wire. This component features a 0.187 inch (4.75mm) tab width and a 0.020 inch (0.51mm) tab thickness. The terminal is manufactured from brass with a tin contact finish. The connector is insulated on the non-mating end, providing enhanced electrical safety. Its free hanging (in-line) mounting type and crimp termination method facilitate straightforward assembly. The overall length of the component is 0.760 inches (19.30mm). This Panduit Corp connector is utilized in industrial automation, telecommunications, and automotive applications where reliable electrical connections are critical.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 18-22 AWG |
| Insulation | Non-Mating End Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.760"" (19.30mm) |
| Termination | Crimp |
| Tab Thickness | 0.020"" (0.51mm) |
| Tab Width | 0.187"" (4.75mm) |
| Tab Length | - |
| Contact Material | Brass |
