DNF14-250-X
CONN QC RCPT 14-16AWG 0.250Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

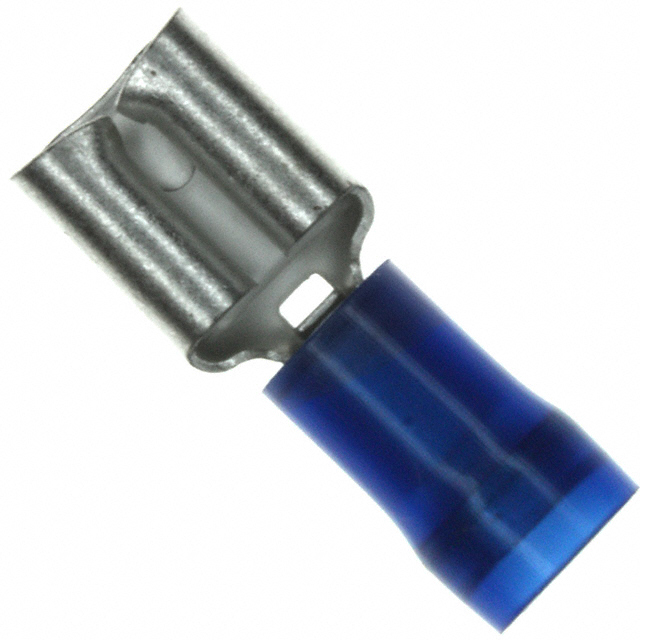

Panduit Corp Pan-Term® DNF14-250-X is a female, quick connect receptacle designed for 14-16 AWG wire. This component features a 0.250" (6.35mm) terminal width with a 0.032" (0.81mm) tab thickness, offering a secure crimp termination. The contact material is copper with a tin finish for reliable conductivity. Its overall length is 0.810" (20.57mm). The unit is non-mating end insulated and designed for free hanging, in-line mounting. The DNF14-250-X is supplied in bulk packaging and is commonly utilized in industrial automation, transportation, and power distribution applications.
Additional Information
Series: Pan-Term®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Non-Mating End Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.810"" (20.57mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Copper |
