DNF14-206-M
CONN QC RCPT 14-16AWG 0.187Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

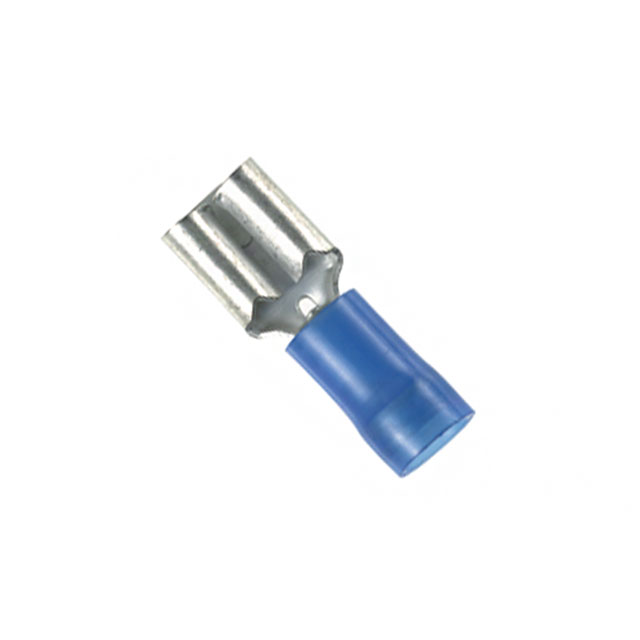

Panduit Corp Pan-Term® DNF14-206-M is a female quick connect receptacle designed for 14-16 AWG wire. This crimp terminal features a brass contact material with a tin finish for reliable conductivity. The connector has a non-mating end insulation and a free-hanging (in-line) mounting type. Its tab dimensions are 0.187" (4.75mm) and 0.205" (5.21mm) with a thickness of 0.020" (0.51mm). The overall length of the component is 0.760" (19.30mm). Serrated termination enhances wire retention. This blue colored connector is commonly utilized in industrial automation, consumer electronics, and automotive sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Non-Mating End Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.760"" (19.30mm) |
| Termination | Crimp |
| Tab Thickness | 0.020"" (0.51mm) |
| Tab Width | 0.187"" (4.75mm), 0.205"" (5.21mm) |
| Tab Length | - |
| Contact Material | Brass |
