DNF14-187-M
CONN QC RCPT 14-16AWG 0.187Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

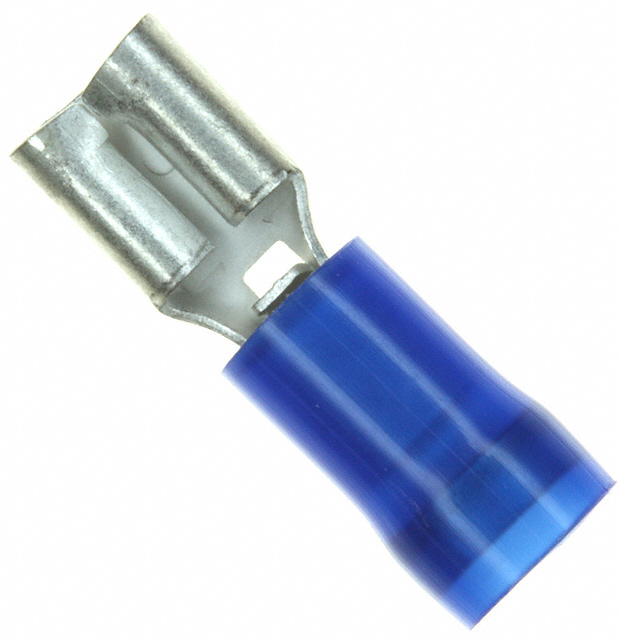

Panduit Corp Pan-Term® DNF14-187-M is a female quick connect receptacle designed for 14-16 AWG wire. This component features a 0.187" (4.75mm) tab width and a 0.032" (0.81mm) tab thickness, fabricated from brass with a tin contact finish. The termination method is crimp, with a serrated feature on the termination for enhanced wire grip. Its overall length is 0.760" (19.30mm). The connector is insulated with a non-mating end design and is suitable for free-hanging, in-line mounting. This component is commonly utilized in industrial automation, telecommunications, and automotive sectors.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Non-Mating End Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.760"" (19.30mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.187"" (4.75mm) |
| Tab Length | - |
| Contact Material | Brass |
