DNF10-250FIB-E
CONN QC RCPT 10-12AWG 0.250Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

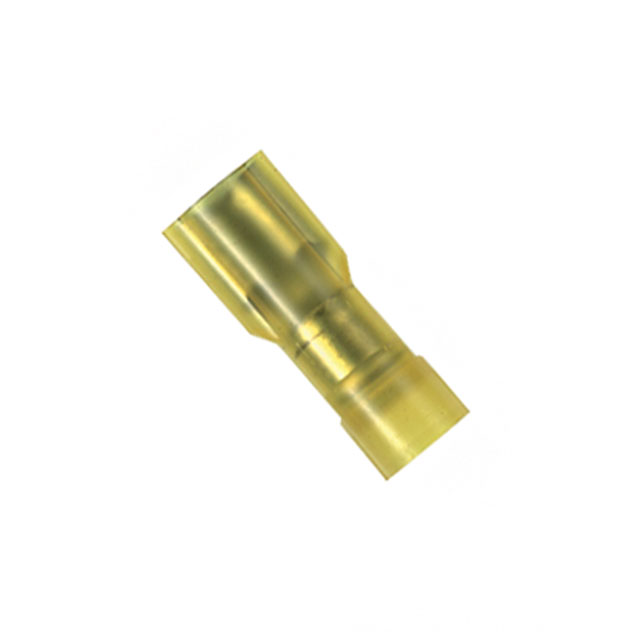

Panduit Corp Pan-Term® DNF10-250FIB-E is a female quick connect receptacle designed for 10-12 AWG wire. This fully insulated connector features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness. The brass contact material with a tin finish ensures reliable conductivity, and the butted seam construction provides enhanced durability. Mounted for free hanging (in-line) applications, this crimp-style terminal offers a secure and insulated connection. It is suitable for use in industrial automation, telecommunications, and power distribution systems. This component is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Butted Seam |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 10-12 AWG |
| Insulation | Fully Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.960"" (24.38mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Brass |
