DMV2-63P-X
CONN QC RCPT/TAB 14-16AWG 0.250Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

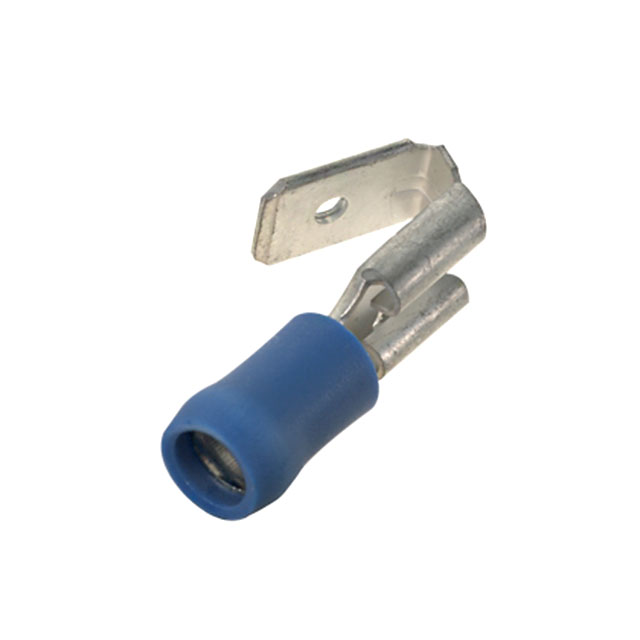

Panduit Corp Pan-Term® DMV2-63P-X is a blue, bulk-packaged quick connect receptacle and tab set designed for 14-16 AWG wire. This crimp-style connector features a 0.250" (6.35mm) tab width with a 0.032" (0.81mm) thickness. The component offers a free-hanging, in-line mounting type and a non-mating end insulated design. Constructed with electrolytic copper for reliable contact, the DMV2-63P-X is utilized in various industrial applications including automotive and manufacturing. Its stacked terminal type ensures efficient connection.
Additional Information
Series: Pan-Term®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Gender | Female and Male |
| Contact Finish | - |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Non-Mating End Insulated |
| Terminal Type | Stacked |
| Length - Overall | 0.882"" (22.40mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Electrolytic Copper |
Request a Quote
