D14-250MB-C
CONN QC TAB 14-16AWG 0.250 CRIMPManufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

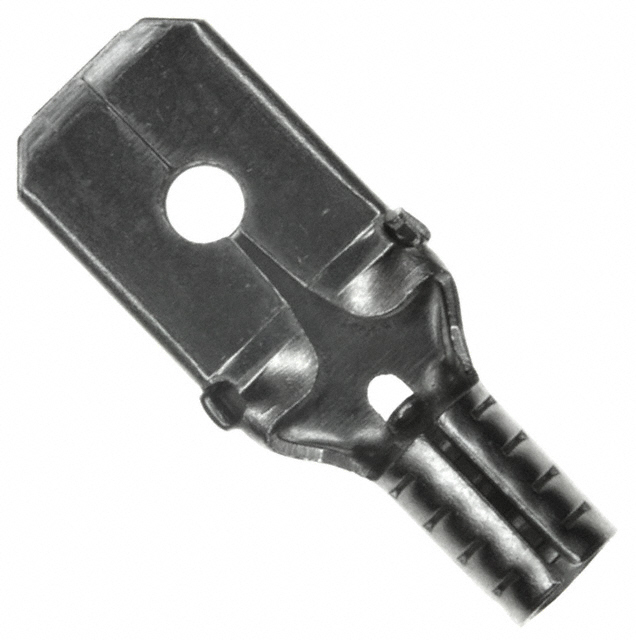

Panduit Corp D14-250MB-C from the Pan-Term® series is a male, non-insulated, quick connect terminal designed for 14-16 AWG wire. This component features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness, with a brass contact material and nickel plating for reliable conductivity. The termination type is crimp, with a butted seam and serrated termination for enhanced wire grip. Its overall length is 0.690" (17.53mm). This component is suitable for in-line, free-hanging applications and is commonly utilized in industrial automation, telecommunications, and automotive sectors. The D14-250MB-C is supplied in bulk packaging.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Butted Seam, Serrated Termination |
| Packaging | Bulk |
| Gender | Male |
| Contact Finish | Nickel |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.690"" (17.53mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.250"" (6.35mm) |
| Tab Length | - |
| Contact Material | Brass |
