D14-187-C
CONN QC RCPT 14-16AWG 0.187Manufacturer: Panduit Corp
Categories: Quick Connects, Quick Disconnect Connectors
Quality Control: Learn More

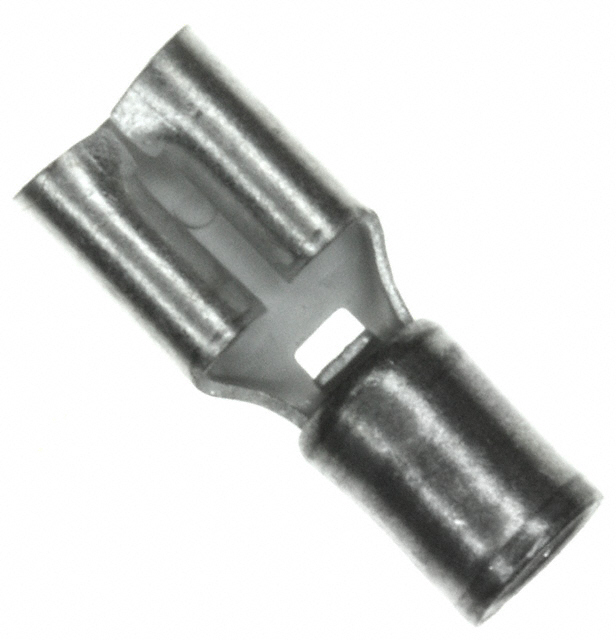

Panduit Corp Pan-Term® D14-187-C is a female quick disconnect receptacle designed for 14-16 AWG wire. This non-insulated crimp terminal features a brass contact material with a tin finish for optimal conductivity. The tab dimensions are 0.187" (4.75mm) wide by 0.032" (0.81mm) thick, with an overall length of 0.580" (14.73mm). The D14-187-C utilizes a serrated termination feature for enhanced wire grip. This component is suitable for free-hanging, in-line mounting configurations and is supplied in bulk packaging. Applications span various industrial sectors requiring reliable electrical connections, including automotive and industrial automation.
Additional Information
Series: Pan-Term®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Serrated Termination |
| Packaging | Bulk |
| Gender | Female |
| Contact Finish | Tin |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 14-16 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Standard |
| Length - Overall | 0.580"" (14.73mm) |
| Termination | Crimp |
| Tab Thickness | 0.032"" (0.81mm) |
| Tab Width | 0.187"" (4.75mm) |
| Tab Length | - |
| Contact Material | Brass |
