EDU20EI-X

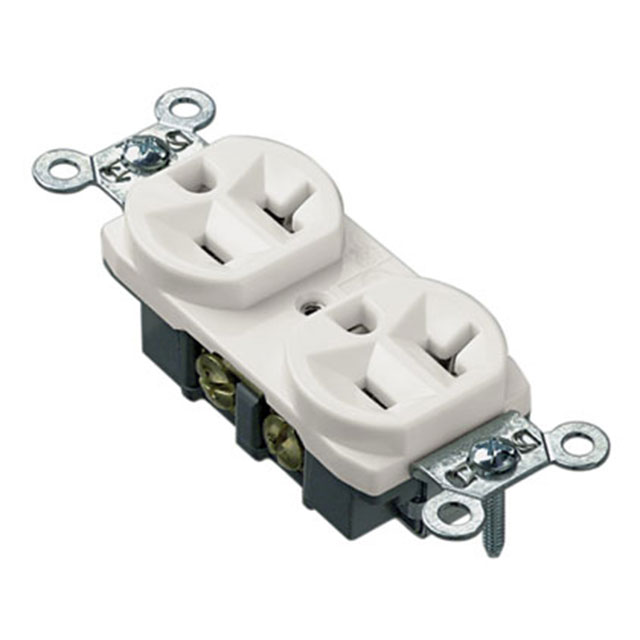

PWR ENT RCPT NEMA5-20 BOX SCREWManufacturer: Panduit Corp
Categories: Plugs and Receptacles
Quality Control: Learn More
Panduit Corp Pan-Way® EDU20 series power receptacle, part number EDU20EI-X. This NEMA 5-20R receptacle offers robust connection for 20A applications. Designed for secure mounting within outlet boxes, it features screw termination for reliable electrical contact. The receptacle provides three positions per connection, accommodating standard power cords. This component is suitable for use in commercial and industrial environments where reliable power delivery is critical. UL approved for safety and performance. Supplied in bulk packaging.
Additional Information
Series: Pan-Way® EDU20RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | Mounting Hardware |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Voltage Rating | - |
| Current Rating (Amps) | 20A |
| Mounting Type | Outlet Box |
| Number of Positions | 3 per connection (2) |
| Termination | Screw |
| Approval Agency | UL |
| Ingress Protection | - |
| Panel Thickness | - |
| Panel Cutout Dimensions | - |
| Connector Style | NEMA 5-20R |
| Material Flammability Rating | - |
