CJSUD688TGVLY
MINI-COM CAT 6 UP/DOWN JACK MODUManufacturer: Panduit Corp
Categories: Modular Connector Jacks
Quality Control: Learn More

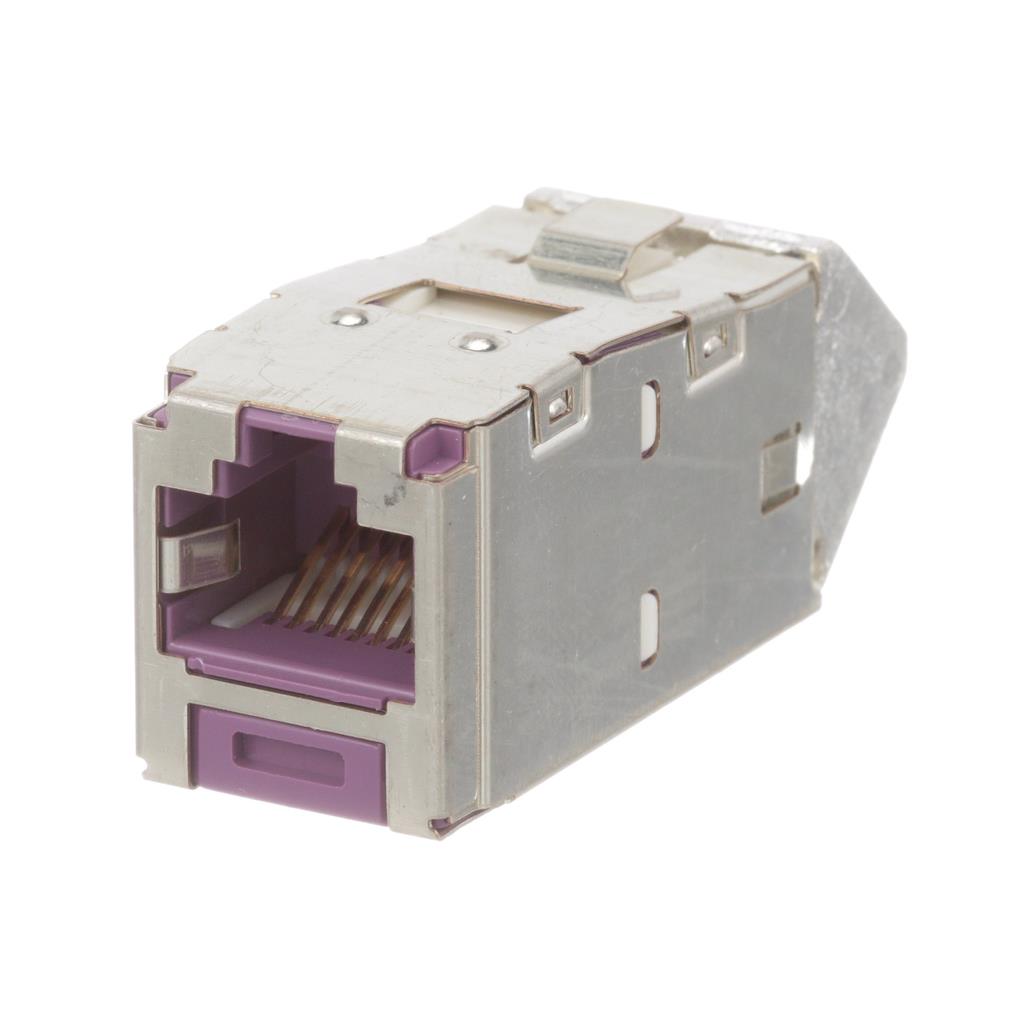

Panduit Corp Mini-Com® CJSUD688TGVLY is a shielded Cat6a modular jack connector. This 8p8c (RJ45, Ethernet) component features a 45° angle orientation and IDC termination for efficient field termination. Constructed with phosphor bronze contacts finished in gold, it ensures reliable signal integrity for high-speed data transmission. Designed for panel mounting, this single-port jack is suitable for demanding networking infrastructure applications, including data centers, enterprise networks, and industrial automation systems where robust performance and shielding against electromagnetic interference are critical. The "Tab Direction: Down" designation further specifies its physical configuration for integration into modular patch panels and wall plates.
Additional Information
Series: Mini-Com®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack |
| Contact Finish | Gold |
| Mounting Type | Panel Mount |
| Shielding | Shielded |
| Orientation | 45° Angle |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Termination | IDC |
| LED Color | Does Not Contain LED |
| Ingress Protection | - |
| Ratings | Cat6a |
| Tab Direction | Down |
| Contact Material | Phosphor Bronze |
| Number of Ports | 1 |
| Number of Rows | 1 |
