CJSUD688TGRDY
MINI-COM CAT 6 UP/DOWN JACK MODUManufacturer: Panduit Corp
Categories: Modular Connector Jacks
Quality Control: Learn More

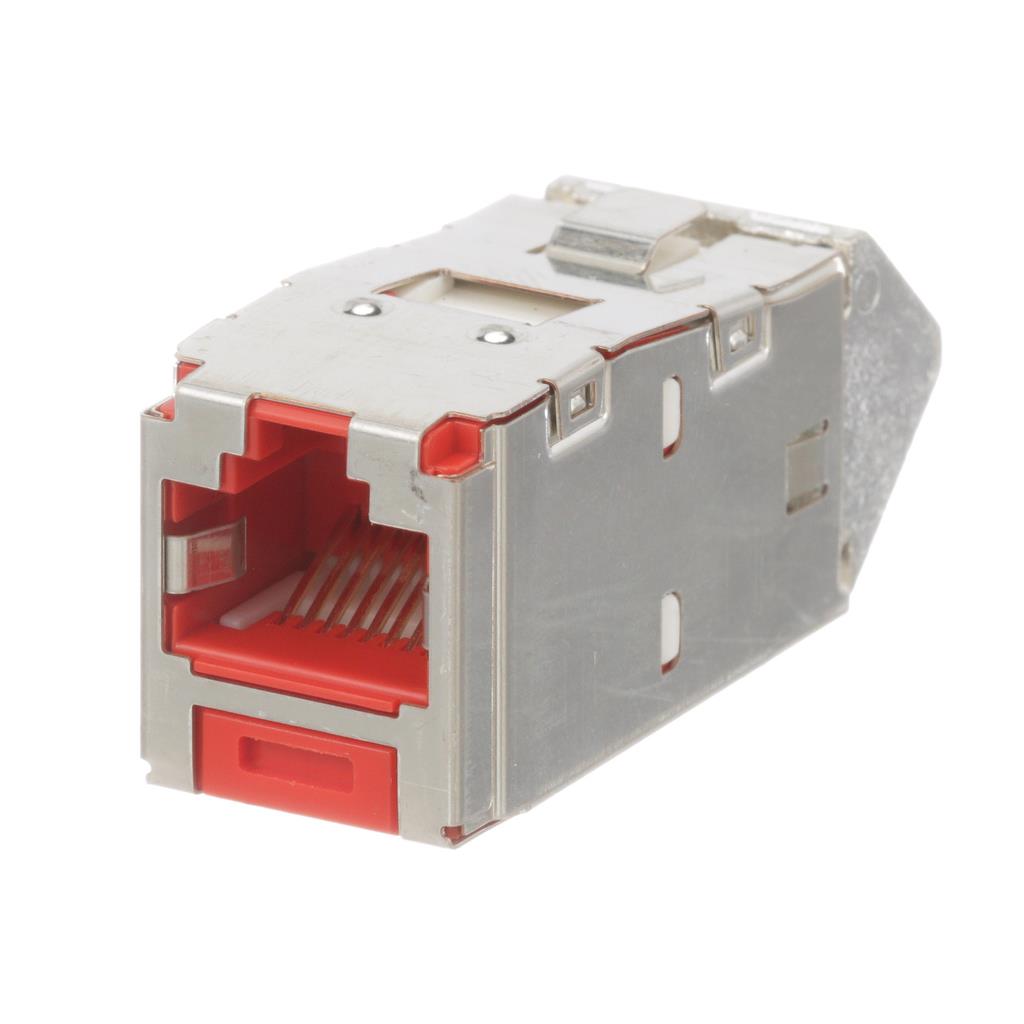

Panduit Corp CJSUD688TGRDY is a Mini-Com® Cat6a shielded modular jack with an 8p8c (RJ45, Ethernet) configuration. This component features a 45-degree angled orientation and a "tab down" configuration for efficient termination. The contacts are constructed from phosphor bronze with a gold plating for enhanced conductivity and durability. Designed for panel mounting, this single-port jack utilizes IDC termination. Its shielded construction makes it suitable for applications requiring robust EMI/RFI protection. This connector is commonly employed in data networking infrastructure, telecommunications, and industrial automation systems where high-speed data transmission and reliable connectivity are paramount.
Additional Information
Series: Mini-Com®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack |
| Contact Finish | Gold |
| Mounting Type | Panel Mount |
| Shielding | Shielded |
| Orientation | 45° Angle |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Termination | IDC |
| LED Color | Does Not Contain LED |
| Ingress Protection | - |
| Ratings | Cat6a |
| Tab Direction | Down |
| Contact Material | Phosphor Bronze |
| Number of Ports | 1 |
| Number of Rows | 1 |
