CJLR688TGBL
CAT6 LEFT/RIGHT 45 DEGREE TG WIRManufacturer: Panduit Corp
Categories: Modular Connector Jacks
Quality Control: Learn More

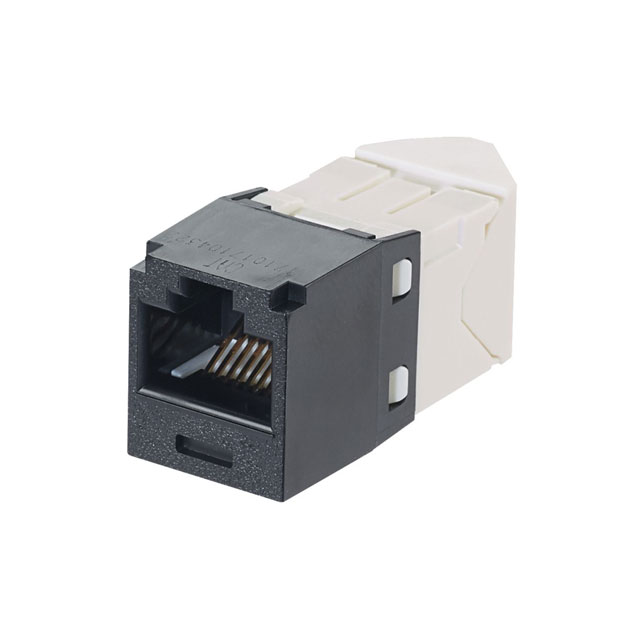

Panduit Corp CJLR688TGBL is a Mini-Com® series modular jack connector. This 8 position, 8 contact (8p8c, RJ45, Ethernet) connector supports Cat6 performance with an unshielded configuration. Designed for panel mounting, it features a straight orientation and IDC termination. The contact material is phosphor bronze, with no specified contact finish. This component is suitable for data networking infrastructure applications.
Additional Information
Series: Mini-Com®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack |
| Contact Finish | - |
| Mounting Type | Panel Mount |
| Shielding | Unshielded |
| Orientation | Straight |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Termination | IDC |
| LED Color | Does Not Contain LED |
| Ingress Protection | - |
| Ratings | Cat6 |
| Tab Direction | Up |
| Contact Material | Phosphor Bronze |
| Number of Ports | 1 |
| Number of Rows | 1 |
