CJ688TPVL
MINI-COM MODULE, CAT 6, UTP, 8 PManufacturer: Panduit Corp
Categories: Modular Connector Jacks
Quality Control: Learn More

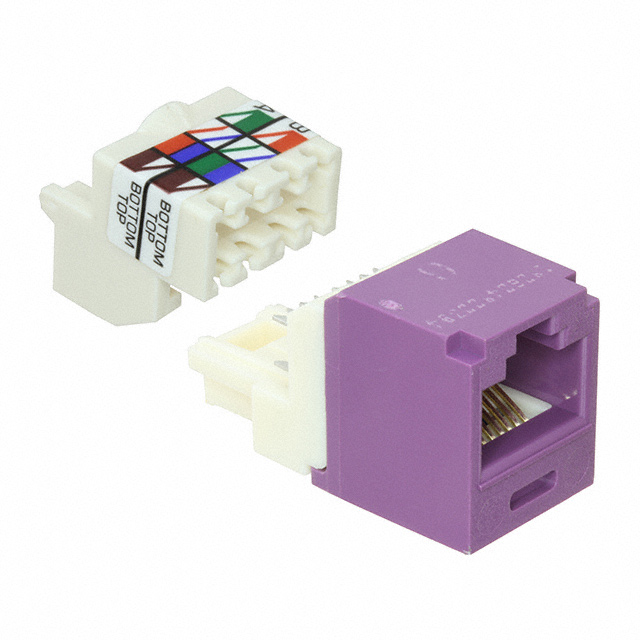

Panduit Corp Mini-Com® CJ688TPVL is an 8-position, 8-contact (8p8c) unshielded modular jack designed for Cat6 performance. This straight, panel-mount connector features IDC termination, facilitating efficient field installation. Constructed with phosphor bronze contacts, it is engineered for high-density networking applications. The CJ688TPVL is suitable for use in telecommunications infrastructure and data networking environments, ensuring reliable signal transmission for Ethernet connectivity.
Additional Information
Series: Mini-Com®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack |
| Contact Finish | - |
| Mounting Type | Panel Mount |
| Shielding | Unshielded |
| Orientation | Straight |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Termination | IDC |
| LED Color | Does Not Contain LED |
| Ingress Protection | - |
| Ratings | Cat6 |
| Tab Direction | Up |
| Contact Material | Phosphor Bronze |
| Number of Ports | 1 |
| Number of Rows | 1 |
