CJ688TPRD
CATEGORY 6, 8 POSITION, 8 WIRE UManufacturer: Panduit Corp
Categories: Modular Connector Jacks
Quality Control: Learn More

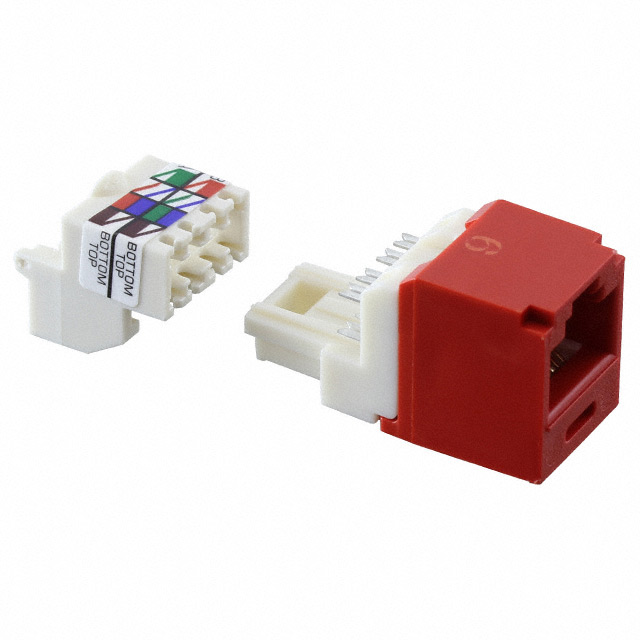

Panduit Corp Mini-Com® CJ688TPRD is a Category 6, 8-position, 8-wire unshielded modular jack connector. This straight, single-port jack utilizes IDC termination for efficient wire management and is designed for panel mount applications. The CJ688TPRD is constructed with phosphor bronze contacts and is rated for Category 6 performance, supporting high-speed data transmission. This component is widely deployed in telecommunications, data networking, and enterprise infrastructure applications. Available in bulk packaging.
Additional Information
Series: Mini-Com®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Jack |
| Contact Finish | - |
| Mounting Type | Panel Mount |
| Shielding | Unshielded |
| Orientation | Straight |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Termination | IDC |
| LED Color | Does Not Contain LED |
| Ingress Protection | - |
| Ratings | Cat6 |
| Tab Direction | Up |
| Contact Material | Phosphor Bronze |
| Number of Ports | 1 |
| Number of Rows | 1 |
