PNL-500-3
CONN TERM RECT LUG 4 AWGManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

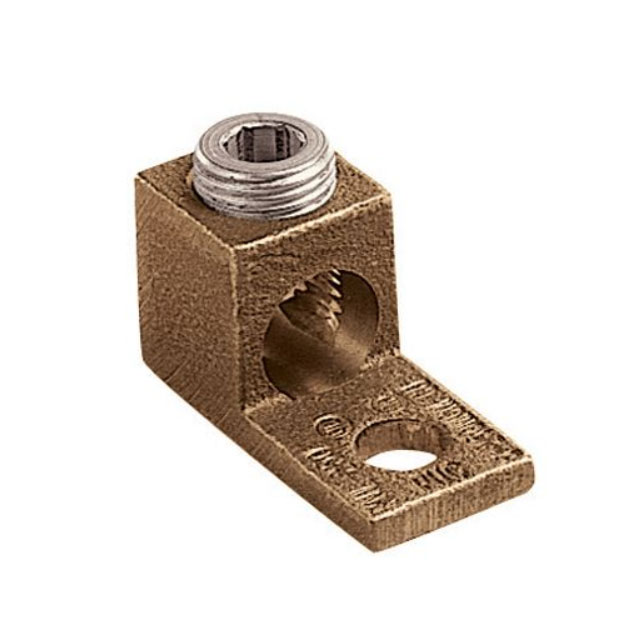

Terminal Connector Rectangular Lug, Grounding 500MCM (kcmil)-4 AWG
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Screw |
| Packaging | Bulk |
| Color | - |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 500MCM (kcmil)-4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | - |
| Length - Overall | 3.000"" (76.20mm) |
| Termination | Screw |
| Width - Outer Edges | 1.380"" (35.05mm) |
| Tab Thickness | 0.250"" (6.35mm) |
| Terminal Style | Single Stud Hole |
Request a Quote
